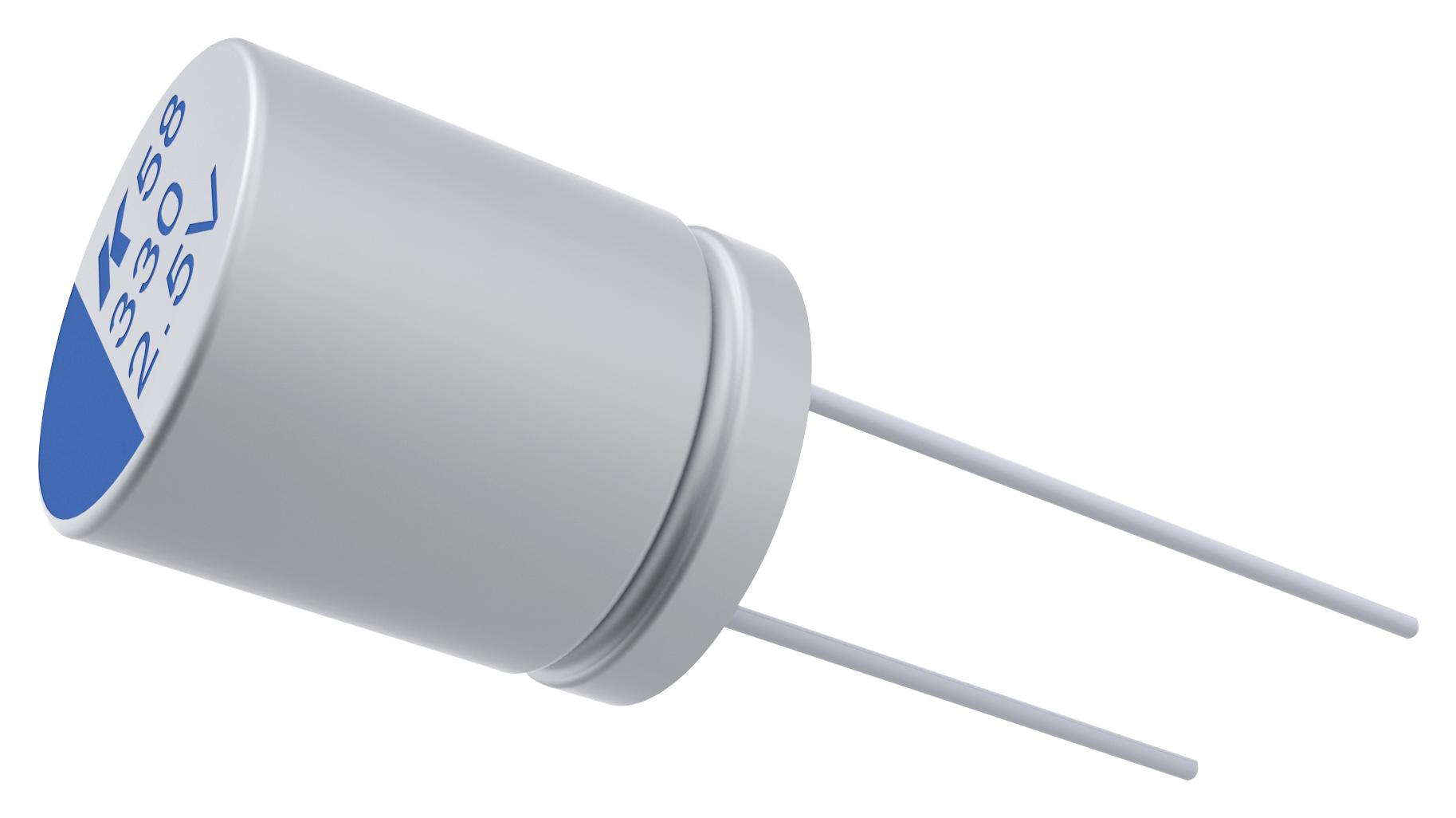

KEMET A750KS128M0JAAE014 Polymer Aluminum Capacitor
The A750 series polymer aluminum capacitor offers high reliability with a capacitance of 1200 uF, a 20% tolerance, and a voltage rating of 6.3 VDC. Designed for operation between -55°C and +105°C, it features lead wires with a 3.5mm spacing, and dimensions of approximately 8mm diameter and 12mm length. Suitable for low ESR applications, it withstands surge voltage and provides stable performance over extended life of 2000 hours at 105°C. Its halogen-free, RoHS-compliant design ensures safety and environmental friendliness for electronic circuits requiring durable power storage components.
KEMET A750KS128M0JAAE014 Polymer Aluminum Capacitor Specifications:
- Capacitance: 1200 uF
- Capacitance Tolerance: 20%
- Voltage DC: 6.3 VDC, Surge: 7.2 VDC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 105°C
- Dimensions: Diameter 8mm ±0.5mm, Length 12mm ±1mm, Lead Spacing 3.5mm ±0.5mm
- Leakage Current: 1512 uA at 20°C for 2 minutes
- Dissipation Factor: 12% at 120Hz, 20°C
- Resistance: 14 mOhms at 100kHz, 20°C
- Ripple Current: 4100 mA at 100kHz, 105°C
- Life Expectancy: 2000 hours at 105°C with cap change within limits
- RoHS: Yes
- Halogen Free: Yes
- Lead Type: Wire Leads
- Packaging: Bulk, Bag, Quantity: 500
Buy the KEMET Series A750 Polymer Aluminum Capacitor: A750KS128M0JAAE014
Enhance your electronic projects with the high-performance KEMET polymer aluminum capacitor. Featuring 1200 uF capacitance, 6.3 VDC voltage, and operating temperature from -55°C to +105°C, it ensures durability and stability. Its lead spacing of 3.5mm makes it easy to integrate into your circuit boards. With RoHS compliance and halogen-free construction, this capacitor is ideal for environmentally conscious manufacturing. Whether for power filtering or energy storage, buy online today to upgrade your electronics with this reliable component.
Buy KEMET A750KS128M0JAAE014 now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy KEMET A750KS128M0JAAE014?
You can click on the BUY or RFQ button to purchase A750KS128M0JAAE014 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A750KS128M0JAAE014?
You can download the A750KS128M0JAAE014 datasheet or visit the KEMET website for support.
Who is the manufacturer of A750KS128M0JAAE014?
KEMET
