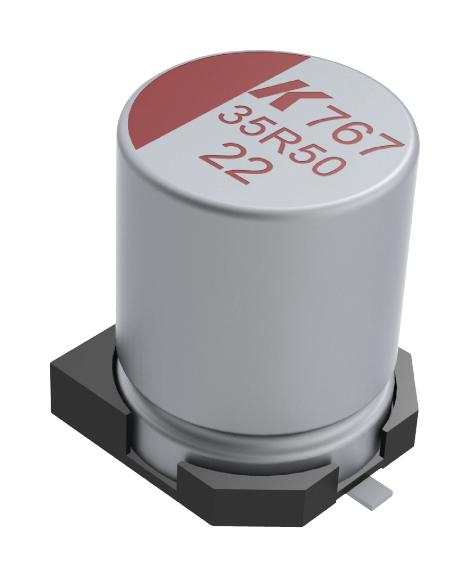

KEMET A767KN476M1HLAE029 Polymer Aluminum Capacitor
The KEMET A767KN476M1HLAE029 is a polymer aluminum capacitor designed for surface mount applications. It offers high capacitance density, excellent ripple current handling, and low ESR, making it ideal for DC-DC converters, filtering, and energy storage in portable electronics, automotive systems, and industrial equipment. The capacitor's polymer dielectric provides improved performance compared to traditional aluminum electrolytic capacitors, with a wider operating temperature range and longer lifespan.
KEMET A767KN476M1HLAE029 Polymer Aluminum Capacitor Specifications:
- Capacitance: 47 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC, 57.5 VDC (Surge)
- Temperature Range: -55/+105°C
- Rated Temperature: 105°C
- Life: 2000 Hrs
- Resistance: 29 mOhms (100kHz 20C)
- ESR/Impedance at 100kHz: 29 mOhms
- Ripple Current: 3300 mAmps (100kHz 105C)
- Leakage Current: 470 uA (2min 20°C)
- Dimensions D: 8mm +/-0.5mm
- Dimensions L: 9.7mm +/-0.3mm
- Dimensions W: 0.8 - 1.1mm
- Dimensions F: 0.2mm MAX
- Dimensions A: 8.3mm +/-0.2mm
- Dimensions B: 8.3mm +/-0.2mm
- Dimensions C: 9mm +/-0.2mm
- Dimensions G: 0.35mm +/-0.2mm
- Dimensions P: 3.1mm +/-0.2mm
- Series: A767
- Dielectric: Polymer Aluminum
- Style: SMD Can
- Description: Surface Mount, Polymer Aluminum
- Lead: V-Chip
- Halogen Free: Yes
- Packaging: T&R, 380mm
- Packaging Quantity: 500
