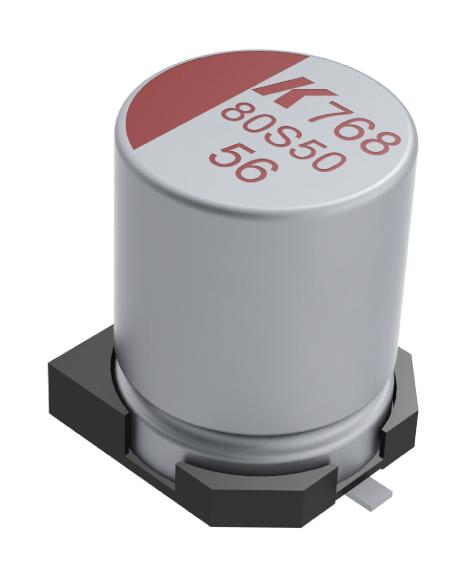

KEMET A768KE826M1GLAE038 Polymer Aluminum Capacitor
The KEMET A768KE826M1GLAE038 is a polymer aluminum electrolytic capacitor, offering high capacitance density and excellent performance in a compact SMD can form factor. Designed for surface mount technology, this capacitor is ideal for applications requiring stable voltage regulation and filtering. Its wide operating temperature range (-55°C to +125°C) and robust construction make it suitable for demanding industrial environments, including power supplies, LED lighting, and renewable energy systems. KEMET’s A768 series provides a reliable solution for energy storage and decoupling applications.
KEMET A768KE826M1GLAE038 Polymer Aluminum Capacitor Specifications:
- Series: A768
- Dielectric: Polymer Aluminum
- Style: SMD Can
- Capacitance: 82 uF
- Capacitance Tolerance: 20%
- Voltage DC: 40 VDC, 46 VDC (Surge)
- Temperature Range: -55/+125°C
- Rated Temperature: 125°C
- Life: 2000 Hrs
- Resistance: 38 mOhms (100kHz 20C)
- Ripple Current: 1350 mAmps (100kHz 125C)
- Leakage Current: 656 uA (2min 20°C)
- Packaging: T&R, 380mm
- Packaging Quantity: 1000
- Dimensions_D: 8mm +/-0.5mm
- Dimensions_L: 6.7mm +/-0.3mm
- Dimensions_W: 8.3mm +/-0.2mm
- Dimensions_H: 8.3mm +/-0.2mm
- Dimensions_C: 9mm +/-0.2mm
- Dimensions_P: 3.1mm NOM
- Dimensions_R: 0.8 - 1.1mm
