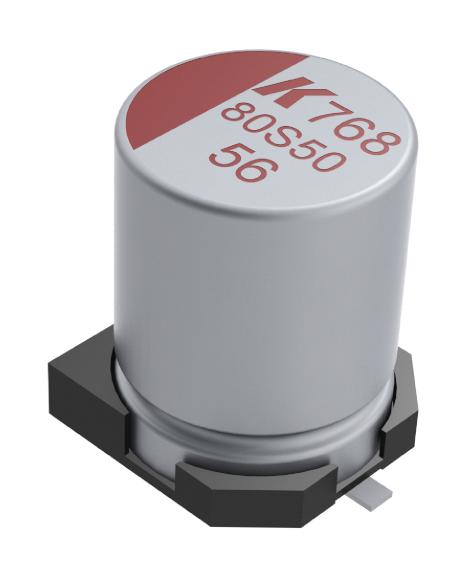

KEMET A768MS127M1HLAV024 Polymer Aluminum Capacitor
The KEMET A768MS127M1HLAV024 is a polymer aluminum electrolytic capacitor designed for surface mount applications. It features a high capacitance of 120µF with a 20% tolerance and a voltage rating of 50VDC (with a surge voltage of 57.5VDC). Operating within a temperature range of -55°C to +125°C, this capacitor is suitable for a wide range of applications including power supplies, DC-DC converters, and LED lighting. The AEC-Q200 qualification ensures suitability for automotive applications. Its low ESR and high ripple current handling capability contribute to efficient and reliable performance.
KEMET A768MS127M1HLAV024 Polymer Aluminum Capacitor Specifications:
- Series: A768
- Dielectric: Polymer Aluminum
- Style: SMD Can
- Description: Surface Mount Polymer Aluminum
- RoHS: Yes
- Lead: V-Chip
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Halogen Free: Yes
- Capacitance: 120 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC, 57.5 VDC (Surge)
- Temperature Range: -55/+125°C
- Rated Temperature: 125°C
- Life: 2000 Hrs
- Resistance: 24 mOhms (100kHz 20C)
- Ripple Current: 2150 mAmps (100kHz 125C)
- Leakage Current: 1200 uA (2min 20°C)
- High Temperature Solder: No
- D: 10mm +/-0.5mm
- L: 12.4mm +/-0.5mm
- W: 10.3mm +/-0.2mm
- H: 10.8mm +/-0.2mm
- C: 11mm +/-0.2mm
- J: 4.4mm NOM
- K: 3.2mm NOM
- P: 4.6mm NOM
- R: 0.7 - 1.1mm
- Packaging: T&R, 380mm
- Packaging Quantity: 400
