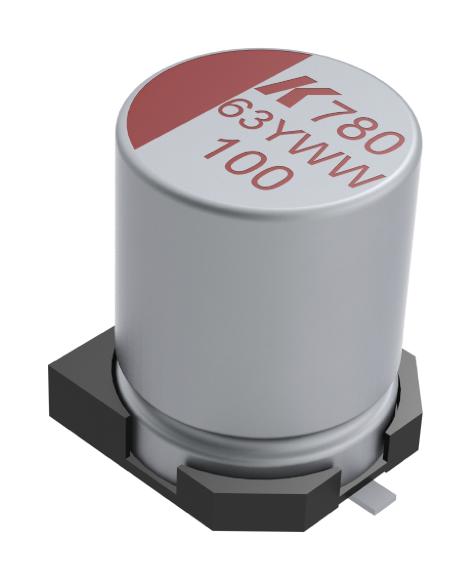

KEMET A780MS107M1JLAV030 Hybrid Polymer Capacitor
The KEMET A780MS107M1JLAV030 is a high-quality hybrid polymer capacitor designed for demanding electronic applications. Featuring a capacitance of 100 uF with a tolerance of 20%, it operates at 63 VDC and withstands temperatures from -55°C to +125°C. Its SMD can style and RoHS compliance make it suitable for compact, environmentally friendly designs. With a lifespan of 4000 hours, it offers low dissipation factor and leakage current, ideal for power supply filtering, energy storage, and high-reliability electronic circuits.
KEMET A780MS107M1JLAV030 Hybrid Polymer Capacitor Specifications:
- Capacitance: 100 uF
- Capacitance Tolerance: 20%
- Voltage DC: 63 VDC, Surge Voltage 72.4 VDC
- Temperature Range: -55°C to +125°C
- Dimensions: D 10mm +/-0.5mm, L 12.4mm +/-0.5mm, W 10.3mm +/-0.2mm
- Dissipation Factor: 8% at 120Hz 20°C
- Leakage Current: 63 uA (2 min at 20°C)
- Rated Temperature: 125°C
- Life: 4000 hours
- Resistance: 30 mOhms at 100kHz 20°C
- Ripple Current Max: 3400 mAmps at 100kHz 125°C with heat sink
- RoHS Compliant: Yes
- AEC-Q200 Qualified: Yes
- Halogen Free: Yes
- Shelf Life: 52 Weeks
- Packaging: T&R, 380mm reels, 400 pcs
Buy the Buy KEMET Hybrid Polymer Part Number A780MS107M1JLAV030 Online
Purchase the KEMET Hybrid Polymer Capacitor in the A780 series online today. This high-performance component offers 100 uF capacitance, 63 VDC rating, and a broad temperature range from -55°C to +125°C. Its SMD design ensures easy integration into compact electronic circuits, while RoHS compliance and durability for demanding environments make it ideal for power supplies, energy storage, and high-reliability applications. Buy now for fast delivery and exceptional quality assurance.
Order your KEMET SeriesA780 A780MS107M1JLAV030 high-reliability capacitor today and enhance your electronic projects with dependable performance and long-lasting stability.
Frequently Asked Questions
Where can I buy KEMET A780MS107M1JLAV030?
You can click on the BUY or RFQ button to purchase A780MS107M1JLAV030 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part A780MS107M1JLAV030?
You can download the A780MS107M1JLAV030 datasheet or visit the KEMET website for support.
Who is the manufacturer of A780MS107M1JLAV030?
KEMET
