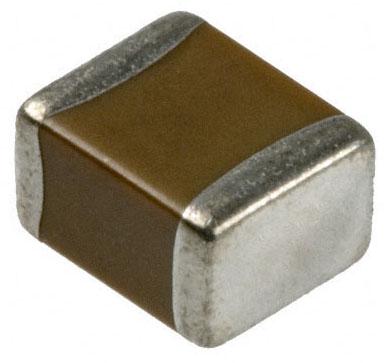

KEMET C0402C102K4RACTU Multilayer Ceramic Capacitor
The KEMET C0402C102K4RACTU is a high-quality multilayer ceramic capacitor designed for surface mount technology (SMT) applications. Featuring a capacitance of 1000pF and a voltage rating of 16VDC, this X7R capacitor provides excellent temperature stability and reliability. Its compact 0402 size makes it ideal for space-constrained designs. Commonly used in filtering, decoupling, and timing circuits, this capacitor is suitable for various industrial and consumer electronics applications. KEMET's commitment to quality ensures consistent performance and long-term durability.
KEMET C0402C102K4RACTU Multilayer Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Description: SMD, MLCC, Temperature Stable, Class II
- Features: Temperature Stable, Class II
- Termination: Tin
- Marking: No
- AEC-Q200: No
- Component Weight: 1210 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 1mm +/-0.05mm
- Chip Size W: 0.5mm +/-0.05mm
- Chip Size T: 0.5mm +/-0.05mm
- Chip Size S: 0.3mm MIN
- Chip Size B: 0.3mm +/-0.1mm
- Capacitance: 1000 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 16 VDC
- Dielectric Withstanding Voltage: 40 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 3.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 10000
Buy the C0402C102K4RACTU KEMET Multilayer Ceramic Capacitor | myMectronic
Purchase the KEMET C0402C102K4RACTU online for a secure and reliable supply.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C0402C102K4RACTU?
You can click on the BUY or RFQ button to purchase C0402C102K4RACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0402C102K4RACTU?
You can download the C0402C102K4RACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0402C102K4RACTU?
KEMET
