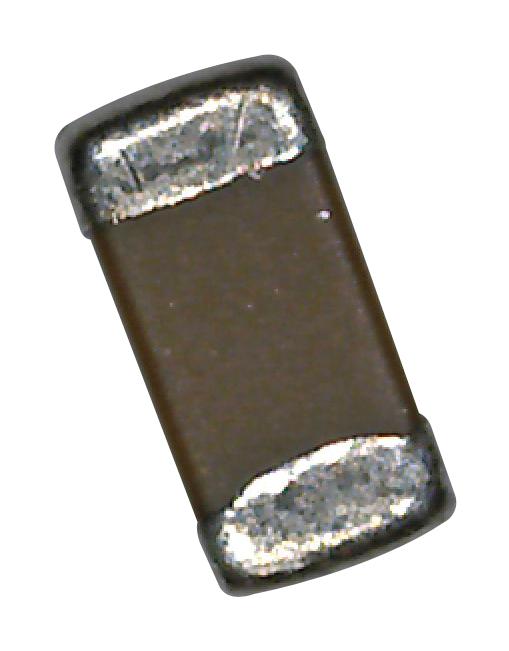

KEMET C0603C392J5RACTU SMD Ceramic Capacitor
The KEMET C0603C392J5RAC TU is a high-quality, multilayer ceramic capacitor specifically engineered for SMD applications. Featuring a 3900pF capacitance and a 50VDC rating, this component is ideal for decoupling, filtering, and timing circuits in a wide range of electronic devices. Its X7R dielectric ensures stable capacitance performance across a temperature range of -55°C to +125°C, making it suitable for demanding industrial and consumer applications. The capacitor's small size (0603) allows for space-saving designs, while its robust construction ensures long-term reliability.
KEMET C0603C392J5RACTU SMD Ceramic Capacitor Specifications:
- Series: SMD Comm X7R
- Style: SMD Chip
- Description: SMD, MLCC, Temperature Stable, Class II
- Features: Temperature Stable, Class II
- Termination: Tin
- Marking: No
- AEC-Q200: No
- Component Weight: 4800 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 1.6mm +/-0.15mm
- Chip Size W: 0.8mm +/-0.15mm
- Chip Size T: 0.8mm +/-0.07mm
- Chip Size S: 0.7mm MIN
- Chip Size B: 0.35mm +/-0.15mm
- Capacitance: 3900 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 4000
