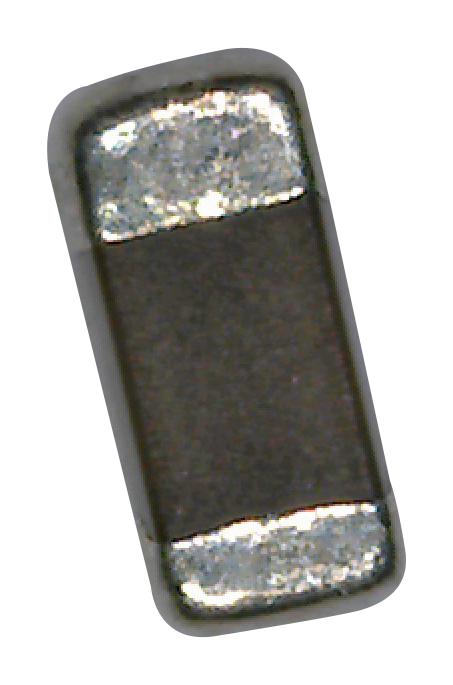

KEMET C0603C472F5GACTU Ceramic Capacitor
KEMET's C Series C0G dielectric ceramic capacitor features a maximum operating temperature of 125°C, offering exceptional stability and low capacitance change over time and voltage. It is ideal for resonant circuits requiring stable, high-Q performance. The component maintains capacitance within ±30 ppm/°C from -55°C to +125°C, making it suitable for precise applications. Available in 0603 package sizes with a capacitance of 4700 pF and voltage ratings up to 50 VDC, it combines high thermal stability, low loss, and minimal piezoelectric noise, ensuring reliable performance in demanding electronic circuits.
KEMET C0603C472F5GACTU Ceramic Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 1%
- Voltage DC: 50 VDC
- Dielectric: C0G/NP0
- Temperature Range: -55°C to +125°C
- Chip Size: 0603
- Dimensions: L 6mm +/-0.15mm, W 0.8mm +/-0.15mm, T 0.8mm +/-0.07mm
- Temperature Coefficient: COG
- Dissipation Factor: 0.10% at 1kHz 25°C
- Insulation Resistance: 100 GOhms
- Aging Rate: 0% Loss/Decade Hour
- RoHS Compliant: Yes
- Termination: Tin
- Packaging: Tape and Reel, 180mm Paper Tape, 4000 pcs
- Features include ultra-stable performance, low ESR and ESL, and high ripple current capability
Buy the KEMET Series SMD Comm COG: C0603C472F5GACTU
Purchase the KEMET ceramic capacitor in 0603 size with 4700 pF capacitance and 50 VDC voltage rating online today. Perfect for resonant circuits and stable electronic systems, this ultra-stable Class I dielectric component provides excellent performance over a wide temperature range of -55°C to +125°C. Its low ESR, ESL, and minimal capacitance variation ensure your designs operate reliably. Enjoy fast delivery, competitive pricing, and the peace of mind that comes with genuine, high-quality electronic components available for convenient online ordering.
Buy KEMET C0603C472F5GACTU now and experience unmatched stability, reliability, and high-performance in your electronic applications.
