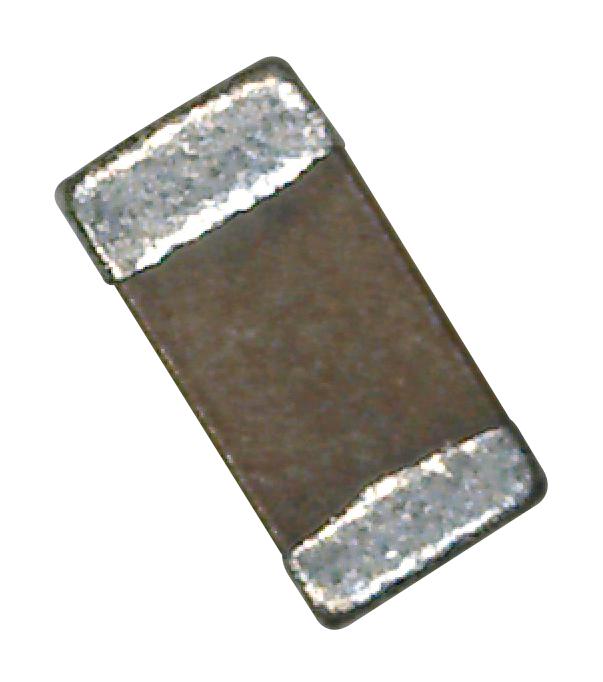

KEMET C0603C684K8PACTU Ceramic Capacitor
KEMET's X5R dielectric surface-mount multilayer ceramic chip capacitor offers reliable performance within a temperature range of -55°C to +85°C. Suitable for bypass, decoupling, and filtering applications, it features a dielectric that exhibits minimal capacitance change—limited to +15%—over its operating temperature. Available in EIA standard case sizes including 0201, 0402, 0603, 0805, 1206, 1210, 1812, and 2220, with voltage ratings from 4 VDC to 50 VDC. It has a lead-free, RoHS and REACH compliant construction with matte tin-plated terminations, ensuring excellent solderability and consistency for automated assembly processes.
KEMET C0603C684K8PACTU Ceramic Capacitor Specifications:
- Dielectric Material: BaTiO3-based X5R formulation
- Operating Temperature Range: -55°C to +85°C
- Capacitance Range: 0.01 pF to 100 pF
- Rated Voltages: 4 VDC, 6.3 VDC, 10 VDC, 16 VDC, 25 VDC, 35 VDC, 50 VDC
- Capacitance Tolerance: +10%, +20%
- Case Sizes: 0201 (0.60 x 0.30 mm), 0402 (1.00 x 0.50 mm), 0603 (1.60 x 0.80 mm), 0805 (2.00 x 1.25 mm), 1206 (3.20 x 1.60 mm), 1210 (3.20 x 2.50 mm), 1812 (4.50 x 3.20 mm), 2220 (5.65 x 5.00 mm)
- Termination Finish: 100% matte tin-plated
- Compliance: RoHS, REACH, Pb-free
- Applications: Decoupling, bypass, filtering
- Soldering: Compatible with wave or reflow soldering techniques, profile according to IPC standards
Buy the KEMET Series X5R Ceramic Capacitor: C0603C684K8PACTU
Enhance your electronic designs with KEMET's high-quality ceramic capacitor, operating from -55°C to +85°C. Perfect for decoupling, filtering, and bypass functions in surface-mount applications, it features stable capacitance with minimal variation over temperature. The capacitor's RoHS and REACH compliance, along with excellent solderability thanks to matte tin plating, make it ideal for automated assembly. Trust KEMET's proven reliability and wide voltage options to meet your specific circuit needs, available now for prompt online purchase and fast delivery.
Buy KEMET C0603C684K8PACTU now and experience unmatched reliability and filtering performance for your electronic applications.
Frequently Asked Questions
Where can I buy KEMET C0603C684K8PACTU?
You can click on the BUY or RFQ button to purchase C0603C684K8PACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0603C684K8PACTU?
You can download the C0603C684K8PACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C0603C684K8PACTU?
KEMET
