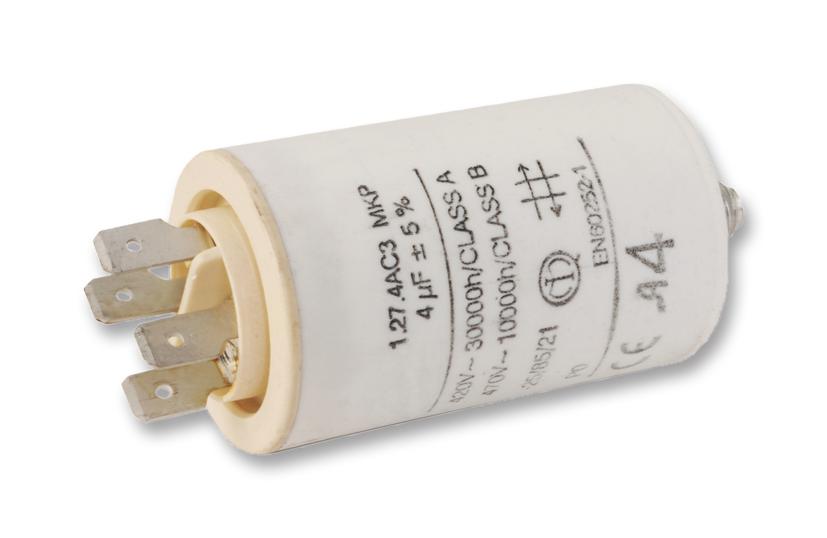

KEMET C276CC35400AA0J Motor Start Capacitor
The C.27 series capacitor is specifically designed for motor start applications such as air-fans, pumps, and low power electric motors. It features high temperature tolerance up to 105°C, high reliability, and self-extinguishing materials. The capacitor is produced according to EN60252 standards with options including unipolar, bipolar, and fixed or fixless configurations. Suitable for continuous or intermittent service, it offers a voltage rating up to 470V, a capacitance range from 1 to 9μF, and a life expectancy of up to 30,000 hours, depending on the model. Its robust case and self-healing dielectric ensure long-lasting performance in demanding environments.
KEMET C276CC35400AA0J Motor Start Capacitor Specifications:
- Capacitance: 1 to 9 μF
- Rated Voltage: 275V~ to 470V~ AC
- Operating Temperature: -25°C to +105°C
- Storage Temperature: -40°C to +90°C
- Life Expectancy: Up to 30,000 hours depending on model
- Material: Polypropylene dielectric, self-healing metal plates
- Case Material: Polypropylene with self-extinguishing features UL94 V2
- Mounting Position: Any position
- Capacitance Tolerance: +5%
- Leakage and clearance compliant with IEC 60252
- Maximum Altitude: 2000 meters
- Vibration Resistance: IEC 68-2-6
- Test Voltage: 2Vn terminal to terminal, 2000V terminal to case for 2 seconds
- Maximum Permissible Voltage: 1.10x Rated Voltage
- Certifications: EN 60252, UL810, VDE
- Protection Degree: > IP40
Buy the Buy KEMET Motor Start Capacitor Part Number C276CC35400AA0J Online
Enhance your project’s reliability by purchasing the KEMET motor start capacitor online. Designed for motor start applications like air-fans, pumps, and low power motors, this capacitor offers high temperature resistance up to 105°C, long operational life up to 30,000 hours, and complies with EN60252 standards. Its self-healing dielectric, robust case, and versatile mounting options make it ideal for continuous or intermittent use. Order now to ensure dependable performance and seamless integration into your electrical systems.
Order your KEMET SeriesC276CC35400AA0J durable motor start capacitor today and ensure reliable operation of your air-fans, pumps, and low power motors.
Frequently Asked Questions
Where can I buy KEMET C276CC35400AA0J?
You can click on the BUY or RFQ button to purchase C276CC35400AA0J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C276CC35400AA0J?
You can download the C276CC35400AA0J datasheet or visit the KEMET website for support.
Who is the manufacturer of C276CC35400AA0J?
KEMET
