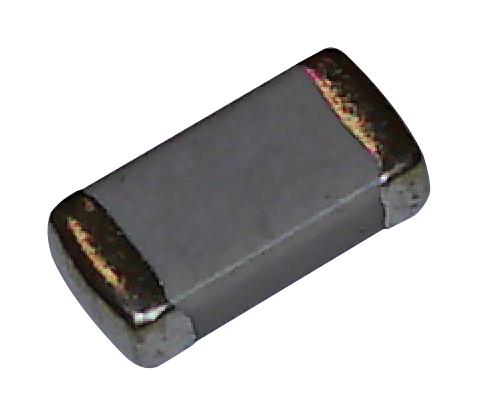

KEMET C0805C100J1GACAUTO automotive ceramic capacitor
This automotive-grade SMD MLCC capacitor features a 10 pF capacitance, 5% tolerance, and 100 VDC voltage rating. With ultra-stable and low-loss characteristics, it is designed for high-reliability applications. The 0805 package measures approximately 2mm in length, 1.25mm in width, and 0.7mm in height, meeting AEC-Q200 standards. It offers excellent insulation resistance of 100 GOhms and a dissipation factor of 0.1% at 1 MHz. The capacitor is RoHS compliant, tin-terminated, and suitable for automotive, industrial, and electronic applications requiring stability and durability.
KEMET C0805C100J1GACAUTO automotive ceramic capacitor Specifications:
- Capacitance: 10 pF
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric: COG
- Package Size: 0805 (2mm x 1.25mm x 0.7mm)
- Temperature Range: -55°C to +125°C
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.1% at 1 MHz
- Temperature Coefficient: COG
- Aging Rate: 0% Loss/Decade Hour
- RoHS: Yes
- Qualification: AEC-Q200
- Termination: Tin
- Marking: No
- Component Weight: 11 mg
- Shelf Life: 78 Weeks
Buy the KEMET Series SMD Auto COG: 10 pF 100 VDC Capacitor
Purchase the KEMET Series SMD Auto COG 10 pF ceramic capacitor online today. Designed for automotive and industrial applications, this ultrastable, low-loss component offers 100 VDC voltage, 5% tolerance, and CEQ-Q200 compliance. Its 0805 size ensures easy mounting, with excellent insulation resistance of 100 GOhms and a dissipation factor of 0.1% at 1 MHz. Secure your supply of high-quality, RoHS-compliant capacitors to enhance the reliability and durability of your electronic systems.
Order your KEMET Series SMD Auto COG 10 pF capacitor today and ensure reliable performance for your automotive and electronic projects.
Frequently Asked Questions
Where can I buy KEMET C0805C100J1GACAUTO?
You can click on the BUY or RFQ button to purchase C0805C100J1GACAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C0805C100J1GACAUTO?
You can download the C0805C100J1GACAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C0805C100J1GACAUTO?
KEMET
