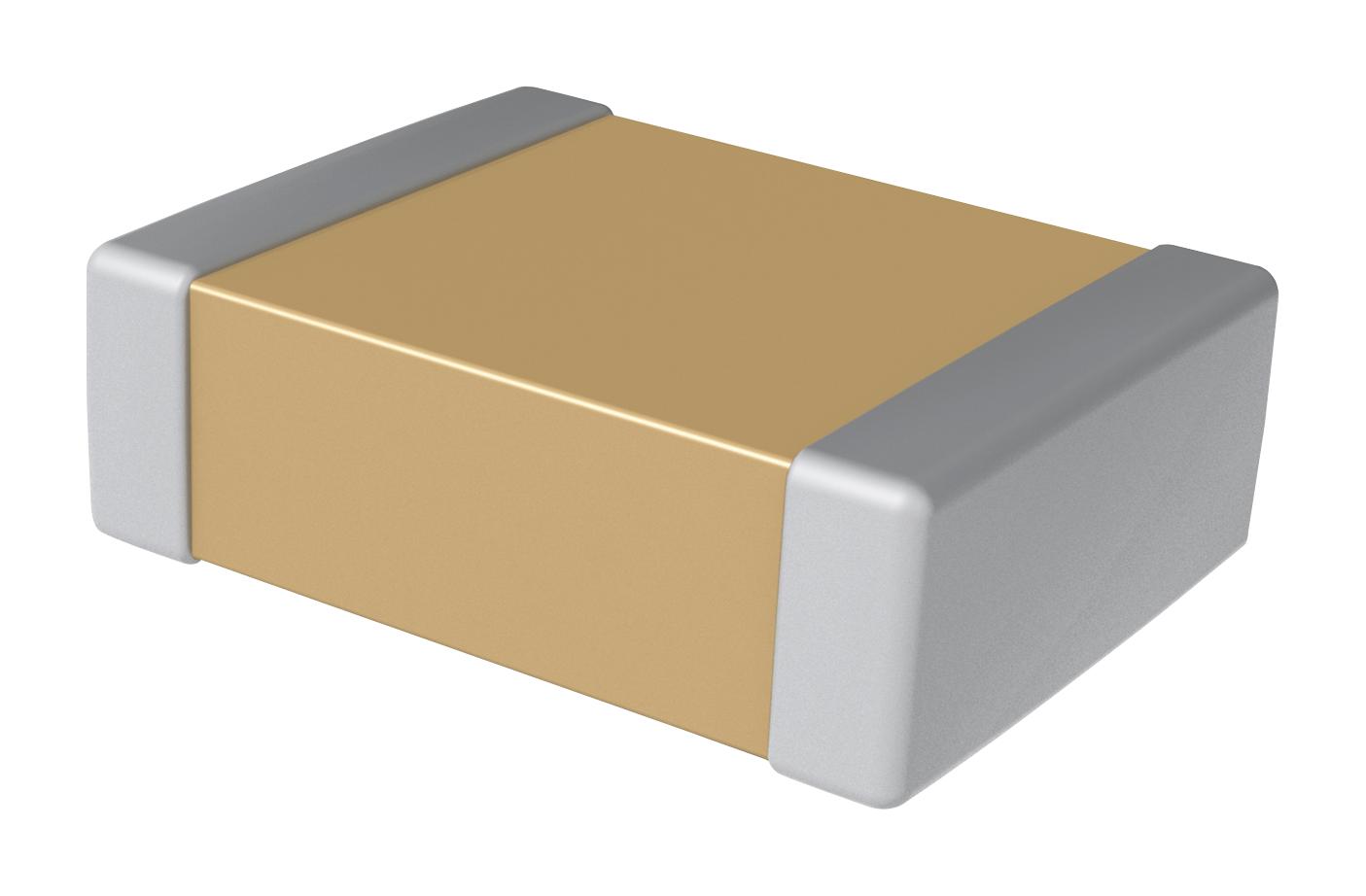

KEMET C1210C105K1RACAUTO Automotive SMD Capacitor
KEMET's automotive-grade surface-mount capacitors with X7R dielectric are designed for reliable performance in harsh environments, including under-hood and in-cabin applications. These capacitors are built to meet strict automotive testing standards and can operate up to 125°C, maintaining stable performance. They are available in EIA case sizes from 0402 to 2220, with capacitance values from 10pF to 22µF, voltage ratings from 6.3V to 250V, and tolerances of ±5%, ±10%, and ±20%. As non-polar devices, they simplify installation in various circuits.
KEMET C1210C105K1RACAUTO Automotive SMD Capacitor Specifications:
- Series: SMD Auto X7R
- Style: SMD Chip
- Temperature Range: -55°C to +125°C
- Capacitance: 1 µF
- Capacitance Tolerance: 10%
- Voltage DC: 100 VDC
- Dielectric: X7R
- RoHS: Yes
- Termination: Tin
- Component Weight: 85 mg
- Dimensions: L 3.2mm ±0.2mm, W 2.5mm ±0.2mm, T 1.7mm ±0.20mm
- Packaging: T&R, 160mm, Plastic Tape
- Packaging Quantity: 2000
- Qualification: AEC-Q200
- Insulation Resistance: 500 MOhms
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Capacitance Change: ±15% at +25°C, 0 VDC, 1 kHz 1.0Vrms
- Aging Rate: 1000 Hours
- Reference Measurement Condition: 1 kHz, 1.0 Vrms
Buy the KEMET Series SMD Auto X7R: C1210C105K1RACAUTO
Purchase your KEMET Series SMD Auto X7R automotive-grade surface-mount capacitor today. Designed for high reliability under harsh conditions, these capacitors feature stable performance up to 125°C, RoHS compliance, and a compact 1210 size. Ideal for automotive, industrial, and high-temperature applications, they offer excellent stability with a capacitance of 1µF, voltage rating of 100V, and a tolerance of 10%. Secure your supply by ordering online now for fast delivery and quality assurance in demanding projects.
Order your KEMET Series SMD Auto X7R 1µF 100V capacitor today and ensure reliable performance in automotive and harsh environmental conditions.
