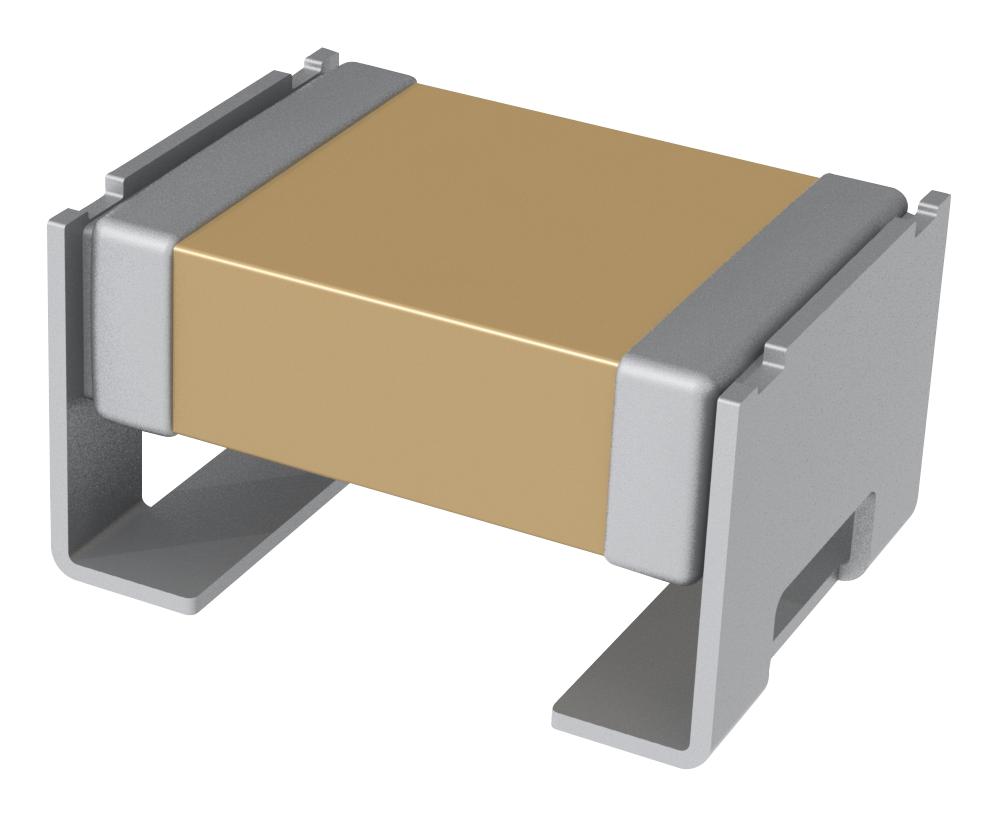

KEMET C1210C105K5N1CAUTO Ceramic Capacitor
This high-temperature automotive-grade ceramic capacitor features a 1 microfarad capacitance with a 10% tolerance, rated at 50VDC. Constructed as a stacked chip with an X8L dielectric, it performs reliably in harsh conditions from -55°C to +150°C. The component, designed for surface-mount applications, complies with RoHS and AEC-Q200 standards, and includes tin termination. Its compact 1210-1 chip size, with dimensions around 3.5mm, ensures suitability for automotive and industrial electronics requiring high temperature resilience and stable capacitive performance.
KEMET C1210C105K5N1CAUTO Ceramic Capacitor Specifications:
- Capacitance: 1 uF
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric: X8L
- Temperature Range: -55°C to +150°C
- Measurement Condition: 1 kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Insulation Resistance: 500 MOhms
- Chip Size: 1210-1
- Dimensions: approximately 3.5mm x 2.6mm x 0.8mm
- Termination: Tin
- Packaging: T&R, 180mm, Plastic Tape, Quantity: 600
- Compliance: RoHS, AEC-Q200
- Shelf Life: 78 Weeks
- Component Weight: 160 mg
- MSL: 1
Buy the Buy KEMET Ceramic Capacitor Part Number C1210C105K5N1CAUTO Online
Purchase the KEMET ceramic capacitor, designed for automotive and high-temperature environments. Featuring 1uF capacitance at 50VDC with X8L dielectric, this surface-mount component ensures durability, stability, and compliance with RoHS and AEC-Q200 standards. Its compact 1210-1 size offers easy integration into complex electronic circuits, while its high temperature range from -55°C to +150°C guarantees optimal performance in demanding conditions. Available in tape packaging for quick, easy assembly, and reliable operation in automotive electronics.
Buy KEMET C1210C105K5N1CAUTO now and experience unmatched reliability and high-temperature performance in automotive applications.
Frequently Asked Questions
Where can I buy KEMET C1210C105K5N1CAUTO?
You can click on the BUY or RFQ button to purchase C1210C105K5N1CAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C105K5N1CAUTO?
You can download the C1210C105K5N1CAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C105K5N1CAUTO?
KEMET
