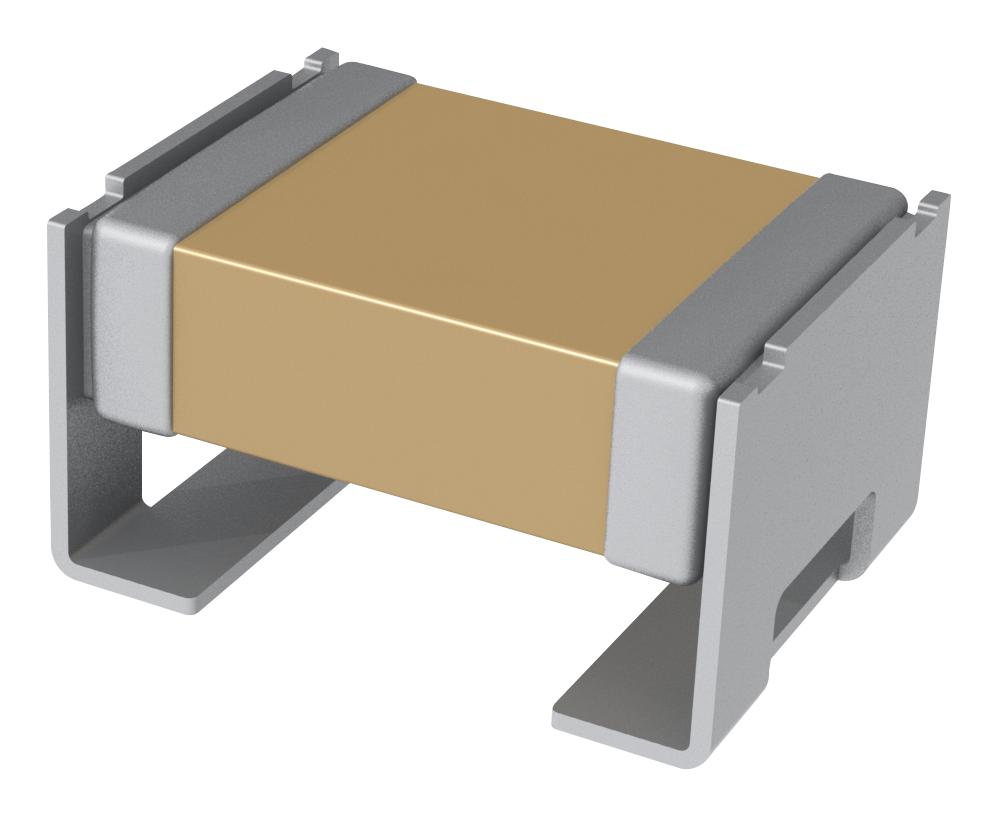

KEMET C1210C475K5R1C7186 Ceramic Capacitor
This is a 4.7 microfarad ceramic capacitor with X7R dielectric, designed for surface-mount applications. It features temperature stability, a voltage rating of 50V DC, and a compact 1210-1 chip size. Suitable for various electronic circuits, it offers a capacitance tolerance of ±10%, low dissipation factor of 5%, and an operating temperature range of -55°C to +125°C. RoHS compliant, with tin termination, the capacitor ensures reliable performance in demanding electronic environments and is ideal for consumer electronics, automotive, and industrial applications.
KEMET C1210C475K5R1C7186 Ceramic Capacitor Specifications:
- Capacitance: 4.7 uF
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dimensions: Length 3.5mm +/-0.3mm, Width 2.6mm +/-0.3mm, Height 3.35mm +/-0.10mm
- Dielectric: X7R
- Measurement Frequency: 1 kHz 1.0 Vrms
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 5% at 1 kHz 1.0 Vrms
- Insulation Resistance: 106.4 MOhms
- RoHS Compliant: Yes
- Termination: Tin
- Package: T&R, 180mm plastic tape, quantity 600
- Shelf Life: 78 weeks
- MSL: 1
Buy the Buy KEMET 4.7uF Ceramic Capacitor Part Number C1210C475K5R1C7186 Online
Experience the reliability of the KEMET ceramic capacitor featuring 4.7 microfarads capacity, 50 volts DC voltage rating, and X7R dielectric for temperature stability. Its 1210-1 chip size ensures easy surface-mount installation, making it perfect for high-performance electronic applications. With a tolerance of ±10%, high insulation resistance of 106.4 MOhms, and RoHS compliance, this capacitor delivers consistent performance across various operating conditions. Ideal for consumer electronics, industrial equipment, and automotive systems, this component is your solution for durable, high-quality circuitry.
Get KEMET C1210C475K5R1C7186 today—built for precision, reliability, and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C1210C475K5R1C7186?
You can click on the BUY or RFQ button to purchase C1210C475K5R1C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C475K5R1C7186?
You can download the C1210C475K5R1C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C475K5R1C7186?
KEMET
