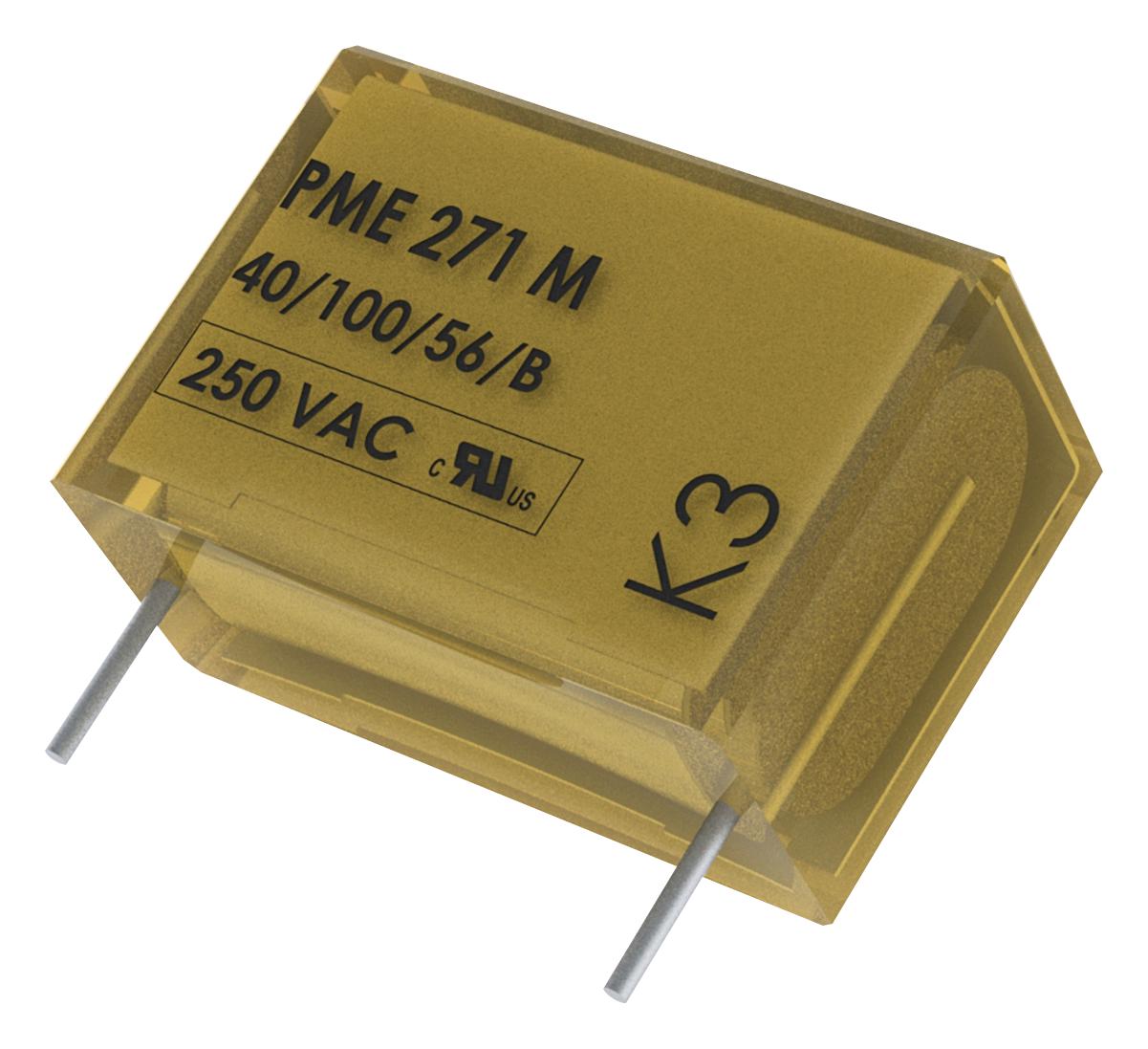

KEMET PME271MD6100MR30 EMI Suppression Capacitor
The PME271M Series consists of metallized impregnated paper capacitors designed for electromagnetic interference suppression in X2 line applications with a rated voltage of 275 VAC. These self-extinguishing, RoHS-compliant components feature excellent stability, high dV/dt capability, and self-healing properties, ensuring long operational life even under frequent overvoltage conditions. They are suitable for worldwide use in EMI filtering across various electrical appliances, meeting stringent safety standards such as UL, ENEC, and cUL. Operating temperature ranges from -40°C to +110°C, with a capacitance range of 0.001 to 0.6 uF, and are supplied with lead spacing options of 10.2 to 25.4 mm.
KEMET PME271MD6100MR30 EMI Suppression Capacitor Specifications:
- Rated Voltage: 275 VAC 50/60 Hz
- Capacitance Range: 0.001 - 0.6 uF
- Capacitance Tolerance: +20% (C < 0.1 uF), +410% (C > 0.1 uF)
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Lead Spacing: 10.2 - 25.4 mm
- Approvals: UL, ENEC, cUL
- Endurance: 1000 hours at upper temperature rated
- Insulation Resistance: ≥ 12,000 MΩ (C ≤ 0.33 uF), ≥ 4,000 MΩ (C > 0.33 uF)
- Dimensions available based on capacitance and lead spacing
- Self-extinguishing, RoHS compliant, and lead-free
Buy the KEMET Series PME271M Capacitor: EMI Suppression, 275 VAC, 0.001-0.6 uF
Enhance your EMI filtering with the KEMET PME271M Series Capacitor, designed for reliable X2 line suppression. Rated at 275 VAC, it offers excellent stability, self-healing properties, and compliance with safety standards like UL, ENEC, and cUL. Perfect for worldwide applications, this capacitor handles a capacitance range of 0.001 to 0.6 uF, with operating temperatures from -40°C to +110°C. Its robust construction with lead spacing options of 10.2 to 25.4 mm ensures easy integration into various electronic systems, offering maximum safety and durability in sensitive environments.
Get KEMET PME271M capacitor today—built for precise electromagnetic interference suppression and long-lasting reliability.
