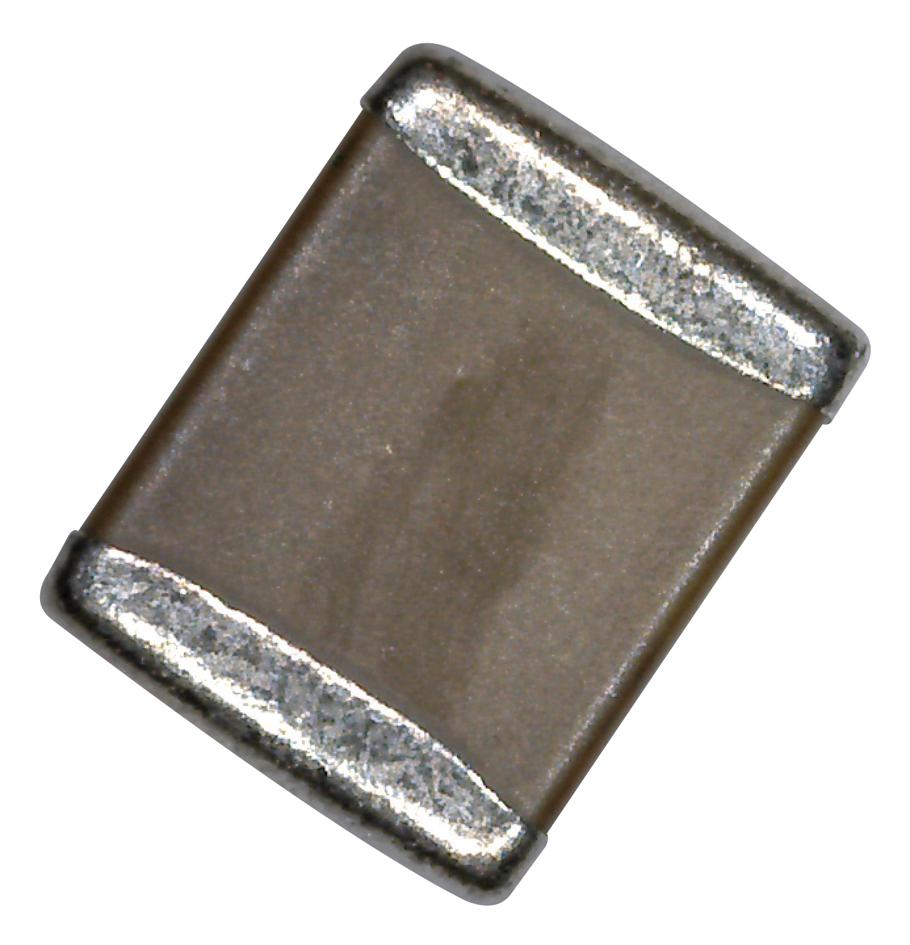

KEMET C1210C684K5RACTU Ceramic Capacitor
KEMET's X7R dielectric ceramic capacitors are temperature stable components rated up to 125°C, designed for bypass and decoupling in electronic circuits. These Class II ceramic MLCCs feature a capacitance of 0.68 µF with a tolerance of ±10% and a voltage rating of 50 VDC. They exhibit a predictable capacitance change of ±15% over -55°C to +125°C and are RoHS and REACH compliant. Packaged in a 1210 SMD case size, they are ideal for applications requiring stable performance over varying temperatures and voltages, including frequency filtering and noise suppression.
KEMET C1210C684K5RACTU Ceramic Capacitor Specifications:
- Capacitance: 0.68 µF
- Capacitance Tolerance: ±10%
- Voltage DC: 50 VDC
- Dielectric: X7R, Class II ceramic
- Temperature Range: -55°C to +125°C
- Dimension: 3.2mm x 2.5mm x 0.5mm
- Package: 1210 SMD
- Dissipation Factor: 2.5% at 1 kHz
- Insulation Resistance: 735.3 MΩ
- Terminals: Tin-plated
- RoHS, REACH Compliant
- Shelf Life: 78 weeks
- Rated for frequency applications, decoupling, bypass
- Aging Rate: 1000 hours
- Maximum operating temperature: 125°C
- Marking: No
- Component weight: 50 mg
Buy the KEMET C1210C684K5RACTU – Reliable Temperature Stable Ceramic Capacitor for Industrial Applications
Enhance your electronic designs with KEMET's ceramic capacitor offering high stability up to 125°C, ideal for bypass and decoupling in industrial circuits. This 0.68 µF SMD component features a 50 VDC rating, compact 1210 case size, and excellent performance in frequency filtering environments. Its RoHS and REACH compliance ensure eco-friendly usage. Designed for reliable operation across wide temperature ranges, this capacitor supports demanding industrial applications with long shelf life and consistent quality, making it a dependable choice for engineers and technicians.
Buy KEMET C1210C684K5RACTU ceramic capacitor now and experience unmatched reliability and performance in electronic filtering and decoupling applications.
Frequently Asked Questions
Where can I buy KEMET C1210C684K5RACTU?
You can click on the BUY or RFQ button to purchase C1210C684K5RACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1210C684K5RACTU?
You can download the C1210C684K5RACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C1210C684K5RACTU?
KEMET
