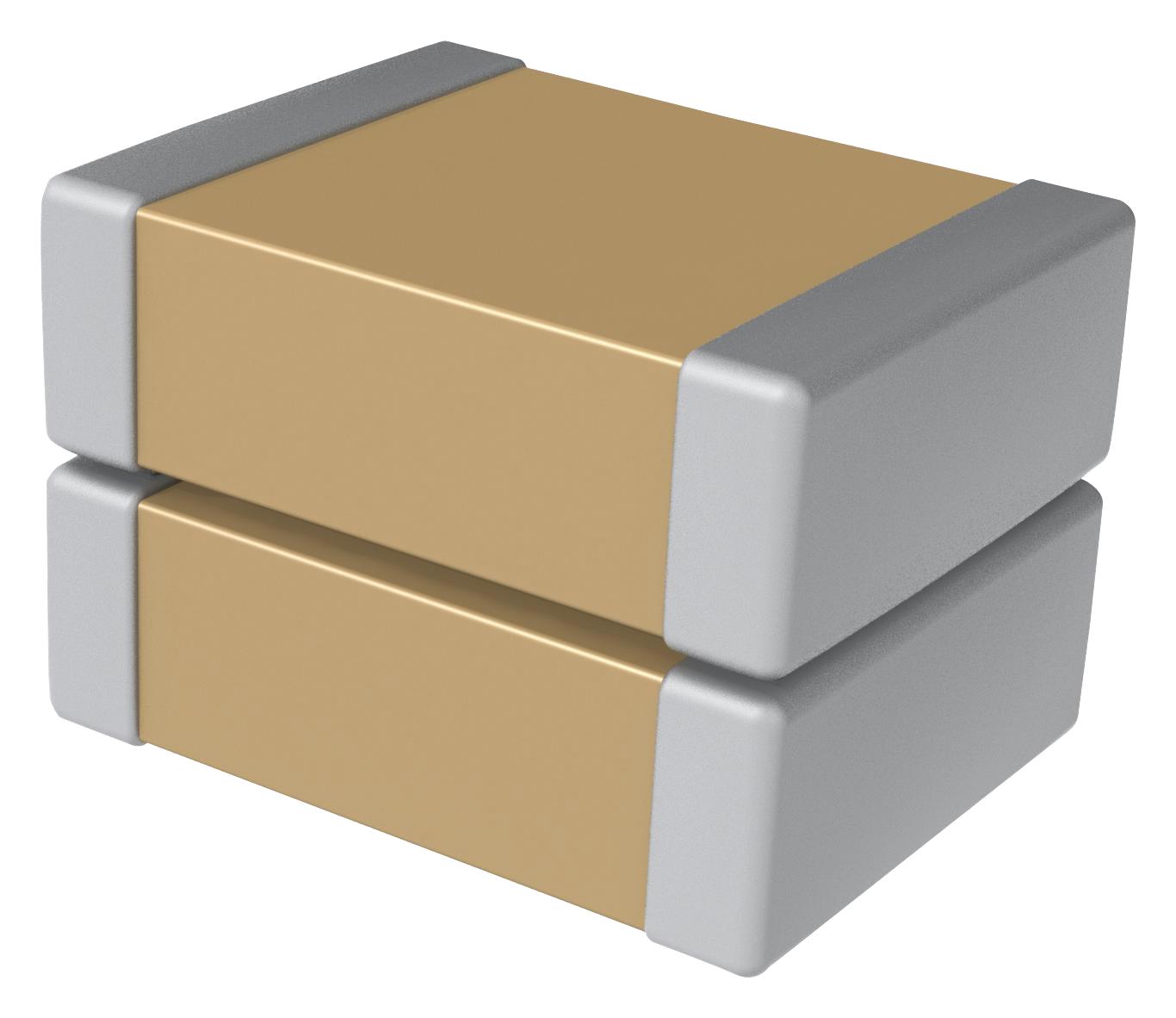

KEMET C1812X203KGRLCAUTO High-Voltage Ceramic Capacitor
This high-performance X7R surface mount multilayer ceramic capacitor employs KONNEKT technology and TLPS material, enabling high-density packaging in a compact 1812 size. It features a capacitance of 0.02uF with 10% tolerance, rated at 2000VDC and capable of withstanding up to 2400VDC. Designed for automotive, industrial, and telecom applications, it maintains stable capacitance from -55°C to +125°C with minimal variation. Its low ESR, ESL, and non-polar construction make it ideal for power supplies, filters, and decoupling in high-voltage environments, supporting reliable performance in demanding conditions.
KEMET C1812X203KGRLCAUTO High-Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.02uF
- Capacitance Tolerance: 10%
- Voltage DC: 2000 VDC, withstands 2400 VDC
- Dimensions: L 4.5mm ±0.4mm, W 3.2mm ±0.3mm, T 5.1mm ±0.4mm
- Chip Size: 1812-2
- Operating Temperature Range: -55°C to +125°C
- Dielectric Withstanding Voltage: 2400 VDC
- Loss Tangent (Dissipation Factor): 2.5% at 120Hz
- Insulation Resistance: 50 GOhms
- Temperature Coefficient: X7R
- Material: Transient Liquid Phase Sintering TLPS ceramic
- Features: High-density packaging, low ESR/ESL, non-polar, automotive-qualified AEC-Q200
- Packaging: T&R, 180mm, plastic tape, 200 pieces per reel
Buy the KEMET C1812X203KGRLCAUTO – Reliable Ceramic Capacitor for Industrial Applications
Enhance your electronic designs with this high-voltage ceramic capacitor featuring 0.02uF capacitance and 2000VDC rating. Its compact 1812 size and automotive qualification ensure durability and reliable performance across power supplies, filters, and decoupling circuits in demanding industrial, automotive, and telecommunications applications. Designed with KONNEKT technology and TLPS materials, it guarantees stability from -55°C to +125°C, possesses low ESR/ESL, and supports high-density PCB designs. Purchase this advanced component online for robust, high-voltage performance where quality is essential.
Buy KEMET C1812X203KGRLCAUTO now and experience unmatched reliability and performance in high-voltage and automotive environments.
Frequently Asked Questions
Where can I buy KEMET C1812X203KGRLCAUTO?
You can click on the BUY or RFQ button to purchase C1812X203KGRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1812X203KGRLCAUTO?
You can download the C1812X203KGRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C1812X203KGRLCAUTO?
KEMET
