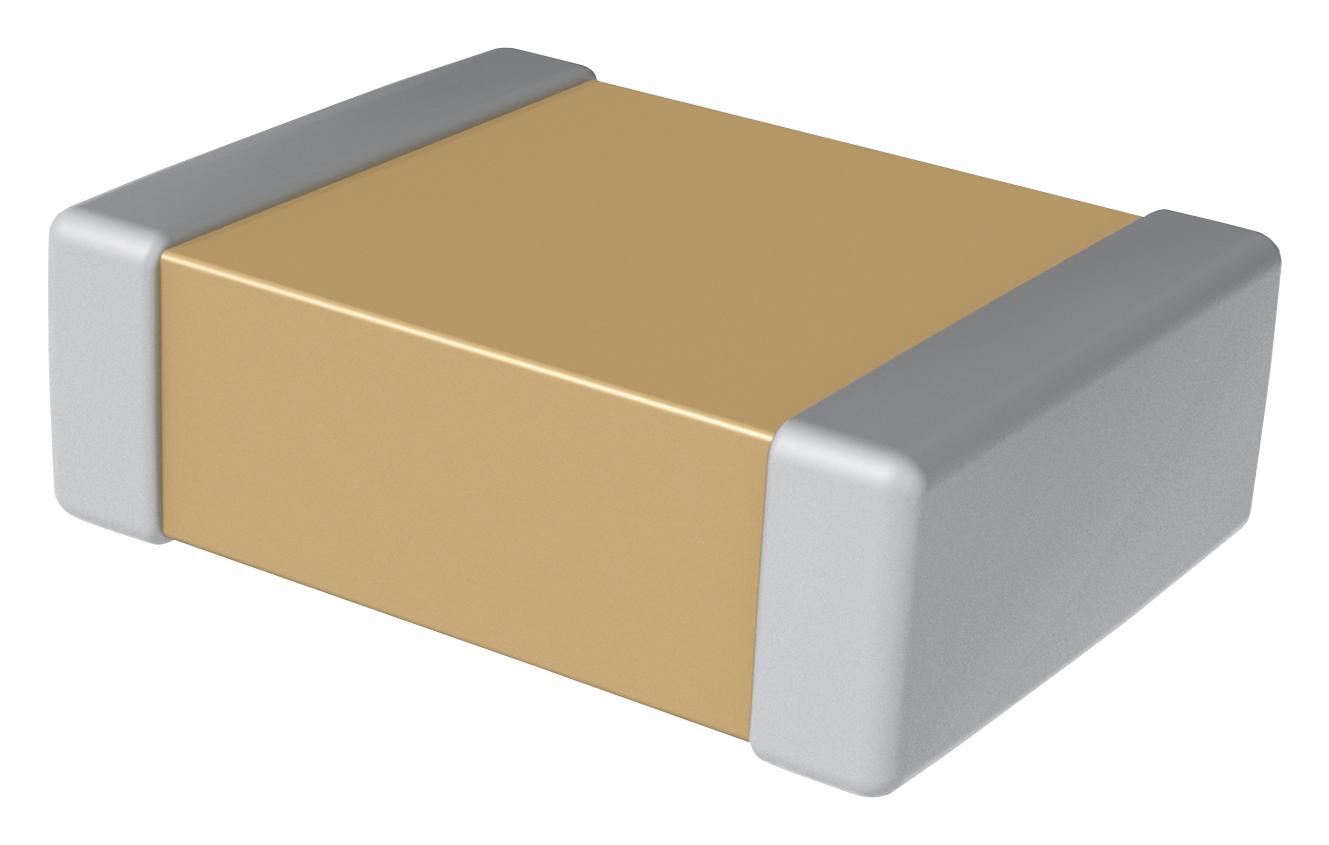

KEMET C1825W224KBRACTU High Voltage Ceramic Capacitor
The KEMET ArcShield SMD Communicating X7R High Voltage Ceramic Capacitor offers reliable performance for demanding electronic circuits. With a capacitance of 0.22 uF and a voltage rating of 630 VDC, it features high voltage tolerance and RoHS compliance. Its small 1825 chip size and flexible termination make it suitable for high-frequency filtering and pulse applications. Operating within a temperature range of -55°C to +125°C, it provides stable performance with 15% capacitance change at 25°C. It is ideal for high-voltage circuits, pulse filtering, and demanding electronic assembly processes.
KEMET C1825W224KBRACTU High Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.22 uF
- Voltage DC: 630 VDC
- Temperature Range: -55°C to +125°C
- Dielectric: X7R
- Capacitance Tolerance: 10%
- Dissipation Factor: 2.5% at 1 kHz
- Measurement Condition: 1 kHz, 1.0 Vrms
- Aging Rate: 3% Loss per decade hour at 1000 hours
- Insulation Resistance: 454.5 MOhms
- Dimensions: Length 4.6mm ±0.4mm, Width 6.4mm ±0.4mm, Thickness 2mm ±0.2mm
- Termination: Flexible Termination
- Packaging: T&R, 180mm plastic tape, quantity 500
- RoHS Compliant: Yes
Buy the KEMET Series ArcShield X7R High Voltage Ceramic Capacitor: C1825W224KBRACTU
Discover the high-quality KEMET Series ArcShield ceramic capacitor with 0.22 uF capacitance and 630 VDC voltage rating. Designed for demanding high-voltage and pulse applications, this SMD component features X7R dielectric for stability over a wide temperature range of -55°C to +125°C. Its flexible termination ensures easy integration into electronic assemblies. Ideal for filtering, pulse circuits, and high-frequency circuits, this RoHS-compliant capacitor guarantees reliable operation, consistent performance, and durability, making it an essential component for industrial, aerospace, and high-power electronic systems.
Order your KEMET Series ArcShield X7R high voltage ceramic capacitor today and ensure reliable performance for your high-power electronic projects.
Frequently Asked Questions
Where can I buy KEMET C1825W224KBRACTU?
You can click on the BUY or RFQ button to purchase C1825W224KBRACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1825W224KBRACTU?
You can download the C1825W224KBRACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C1825W224KBRACTU?
KEMET
