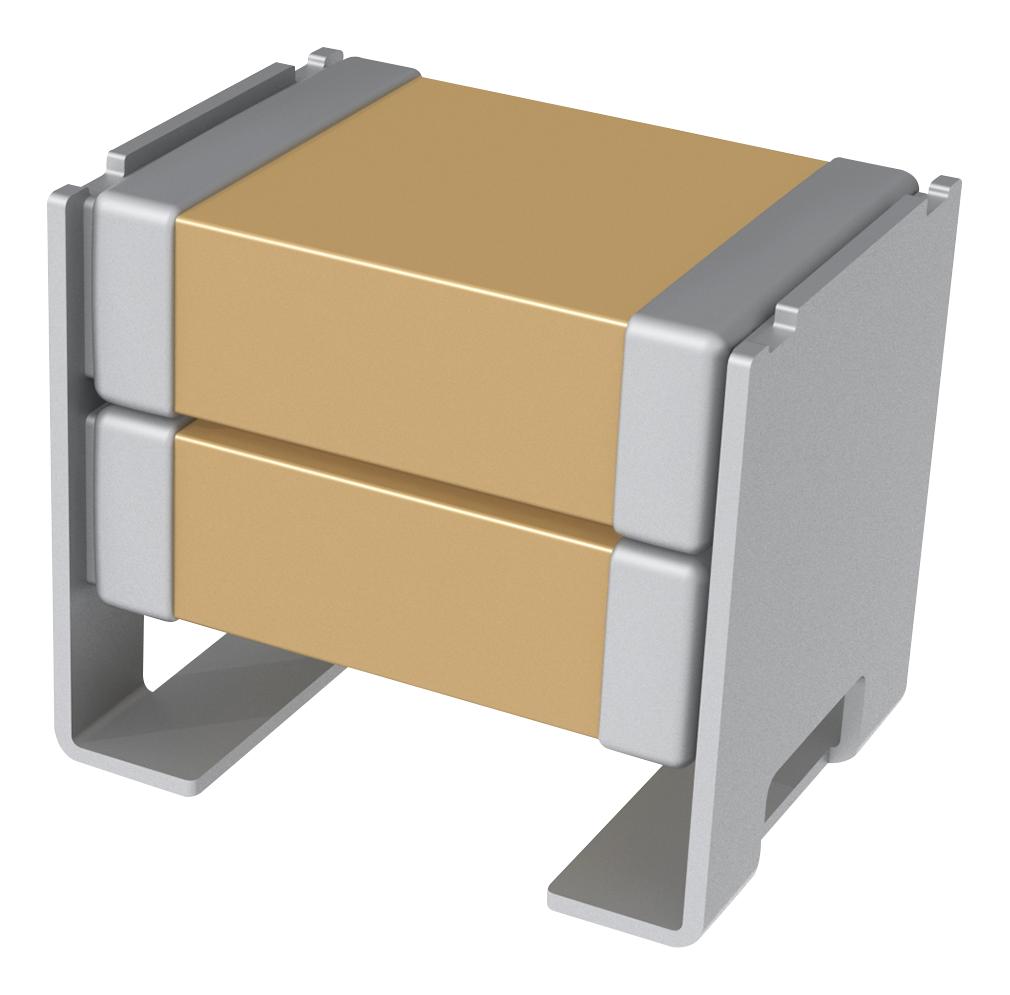

KEMET C2220C225MAR2C7186 Ceramic Capacitor
KEMET's KPS Series surface mount multilayer ceramic chip capacitors utilize proprietary lead-frame technology, offering enhanced mechanical and thermal stress resistance. In a compact design, they feature stacked capacitors in single or double configurations with up to 10mm of board flex capability. These environmentally friendly devices are RoHS compliant, capable of Pb-free reflow soldering, and provide lower ESR, ESL, and higher ripple currents. Suitable for automotive, industrial, military, and telecom applications, they ensure reliability with high capacitance density and mechanical integrity even under temperature cycling and board flexure.
KEMET C2220C225MAR2C7186 Ceramic Capacitor Specifications:
- Dielectric: X7R
- Capacitance Range: up to 10uF per chip, stacked configurations available
- Capacitance Tolerance: ±10% or +20%
- Voltage Range: 8V to 250V
- Capacitor case sizes: 1210, 1812, 2220 (mm), corresponding to inches (0.138, 0.197, 0.236)
- Dimensions (mm): 1210 — Length: 3.50 ±0.30, Width: 2.60 ±0.30, Thickness: 0.80 ±0.15; 1812 — Length: 5.00 ±0.50, Width: 3.50 ±0.50, Thickness: 1.10 ±0.30; 2220 — Length: 6.00 ±0.50, Width: 5.00 ±0.50, Thickness: 1.60 ±0.30
- Lead pitch: 8 mm for 1210 and 1812, 12 mm for 2220
- Operating Temperature Range: -55°C to +125°C
- Liquidus Temperature: Capable of Pb-free reflow profiles, compliant with IPC/JEDEC J-STD-020D.1
- Electrical Characteristics include low ESR and ESL, high ripple current capability, and resistance to mechanical and thermal stress
- Packaging: Tape and reel aligning with EIA standard 481 for automatic placement, various reel sizes available
Buy the KEMET 2220FL – Reliable Automotive and Industrial Capacitors for High-Stress Applications
Purchase KEMET ceramic capacitors online today—engineered for superior performance in industrial, automotive, and military applications. These high-reliability, RoHS-compliant devices feature stacked multilayer designs with up to 10uF capacitance, providing excellent ESR, ESL, and ripple current capabilities. Their compact form factor and robust mechanical and thermal stress resistance ensure durability under temperature cycling and board flex. Ideal for smoothing circuits, power supplies, and noise reduction, these capacitors support Pb-free reflow soldering and are perfect for phase-critical, safety-relevant applications that demand long-lasting performance and space savings.
Get KEMET 2220FL today—built for high-capacitance density, mechanical resilience, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy KEMET C2220C225MAR2C7186?
You can click on the BUY or RFQ button to purchase C2220C225MAR2C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C225MAR2C7186?
You can download the C2220C225MAR2C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C225MAR2C7186?
KEMET
