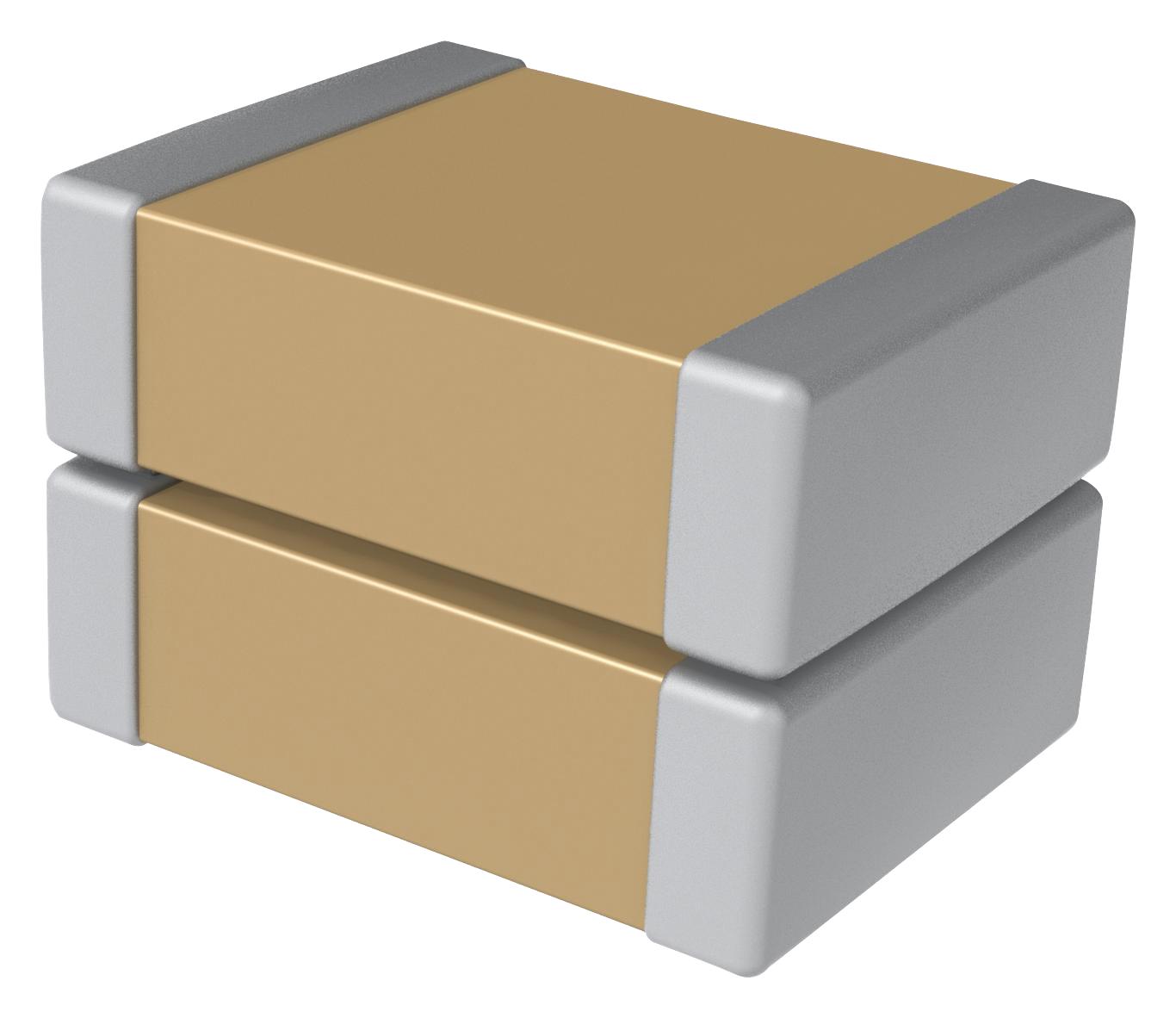

KEMET C2220X664KBRLCAUTO High-Performance Automotive Ceramic Capacitor
KONNEKT Auto X7R ceramic multilayer capacitor is designed with advanced KONNEKT™ technology, offering high-density packaging, stable temperature performance, and industry-leading CV values. Featuring X7R dielectric, these surface-mount MLCCs maintain capacitance within ±15% from -55°C to +125°C, are RoHS compliant, and have low ESR and ESL for efficient operation. Certified for automotive use under AEC-Q200 standards, they are suitable for high voltage, high capacitance applications in automotive, power supplies, telecommunications, medical, military, aerospace, and test equipment. These capacitors enable compact, reliable solutions across various demanding industries.
KEMET C2220X664KBRLCAUTO High-Performance Automotive Ceramic Capacitor Specifications:
- Capacitance: 0.66uF
- Capacitance Tolerance: 10%
- Voltage DC: 630 VDC
- Temperature Range: -55/+125°C
- Dielectric: X7R
- Measurement Condition: 120 Hz 0.5Vrms
- Capacitance Change: ±15% from -55°C to +125°C
- Dissipation Factor: 2.5% at 120 Hz 0.5Vrms
- Insulation Resistance: 152 MOhms
- Dimensions: Length 5.9mm ±0.75mm, Width 5mm ±0.4mm, Thickness 5.1mm ±0.4mm
- Terminal B: 0.7mm ±0.35mm
- Packaging: T&R, 180mm, Plastic Tape
- Qualification: AEC-Q200
- Component Weight: 800 mg
- Shelf Life: 78 Weeks
Buy the KEMET Series KONNEKT Auto X7R Ceramic Capacitor: C2220X664KBRLCAUTO
Get the KEMET KONNEKT Auto X7R ceramic capacitor C2220X664KBRLCAUTO online today. Designed with innovative KONNEKT technology, it offers high-density packaging, stable performance over a wide temperature range, and low ESR/ESL. Certified for automotive use, it ensures dependable operation in power supplies, automotive systems, and high-voltage circuits. Compact and reliable, this capacitor is perfect for applications demanding high capacitance, stability, and quality, making it your smart choice for efficient electronic design and manufacturing.
Buy KEMET KONNEKT Auto X7R ceramic capacitor C2220X664KBRLCAUTO now and experience unmatched reliability and performance in your demanding applications.
Frequently Asked Questions
Where can I buy KEMET C2220X664KBRLCAUTO?
You can click on the BUY or RFQ button to purchase C2220X664KBRLCAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220X664KBRLCAUTO?
You can download the C2220X664KBRLCAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220X664KBRLCAUTO?
KEMET
