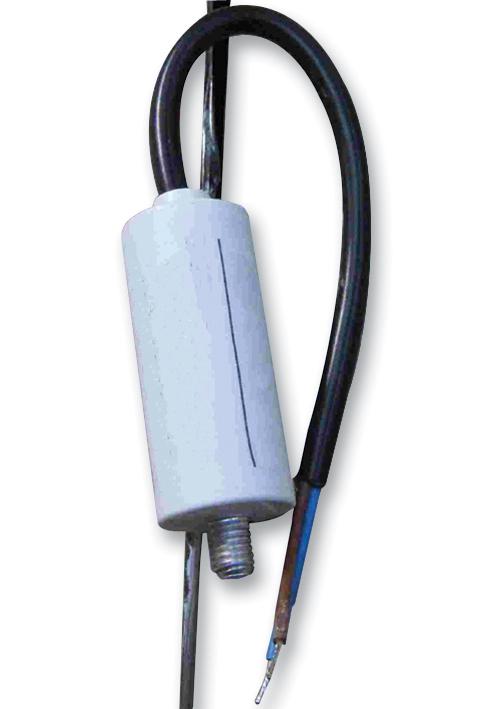

KEMET C274ACF4400WA0J Motor Start Capacitor
The C.27/4 series capacitor is designed for use in single-phase electric motors, aiding start-up and increasing torque in applications like air-fans, pumps, and circulators. It features a compact disk case with self-healing plates and polypropylene dielectric, rated for 420V~ and 30,000 hours in CLASS A, with a wide operating temperature range of -40°C to +85°C. Suitable for continuous operation, it adheres to EN60252 standards and includes safety features such as self-extinguishing case materials and high dielectric strength for reliable performance in industrial environments.
KEMET C274ACF4400WA0J Motor Start Capacitor Specifications:
- Capacitance: 4.0 uF
- Rated Voltage: 420V~
- Maximum Voltage: 470V~ (Class B) for 1 hour
- Time Rating: 30,000 hours (Class A) at 420V, 85°C
- Temperature Range: -40°C to +85°C operating; -40°C to +90°C storage
- Dielectric: Polypropylene
- Case Material: Self-extinguishing plastic (UL94 V2), disk shape
- Mounting: Any position
- Safety Certification: EN60252, UL810, IMQ
- Leakage and clearance: > 5mm between parts under voltage, > 6mm to accessible metal
- Maximum Altitude: 2000m
- Capacitance Tolerance: ±5%
Buy the KEMET C.27/4 – Reliable Start Capacitor for Industrial Applications
Order the KEMET C.27/4 start capacitor online now for dependable performance in single-phase electric motors. Designed with polypropylene dielectric, self-healing plates, and UL standards compliance, it guarantees long service life and safety. Perfectly suited for air-fans, pumps, and circulators, this capacitor ensures efficient starting and increased torque, with rated voltage of 420V~ and a lifespan of 30,000 hours at 85°C. Secure your industrial motor needs—buy online today for swift delivery and reliable operation.
Get KEMET C.27/4 today—built for precision and long-lasting durability in industrial motor start-ups.
