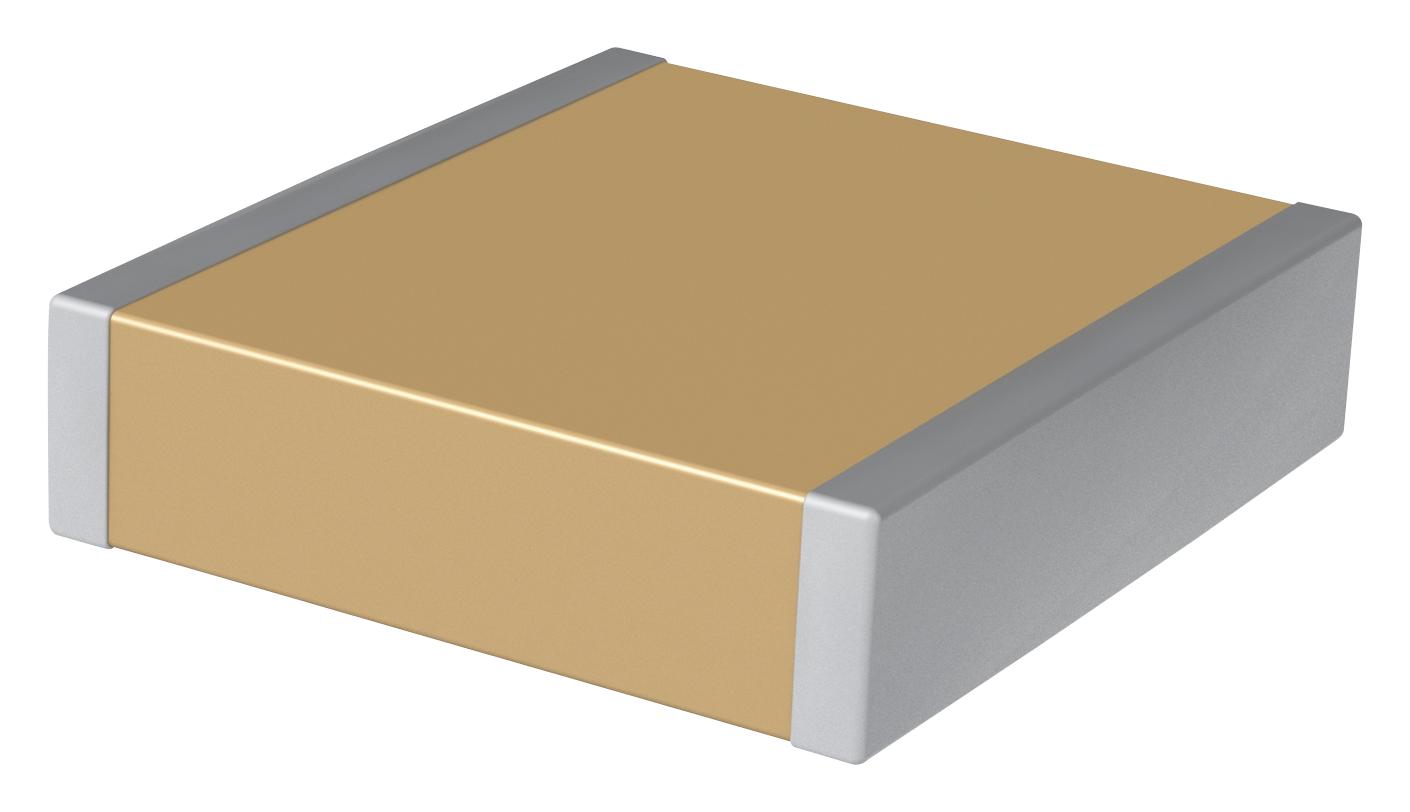

KEMET C3040C103JGGACAUTO High Voltage Ceramic Capacitor
This high-voltage ceramic capacitor from the SMD Auto COG HV series is designed for automotive applications, featuring ultra-stable low-loss performance, 0.01 µF capacitance, and 2000 VDC voltage rating. Built to meet AEC-Q200 automotive standards, it offers excellent dielectric stability across temperatures from -55°C to +125°C. Its compact 3040 chip size ensures easy integration in automotive systems requiring robust, high-voltage capacitors with low dissipation factor and insulative resistance of 100 GOhms, making it ideal for demanding electrical environments.
KEMET C3040C103JGGACAUTO High Voltage Ceramic Capacitor Specifications:
- Capacitance: 0.01 µF
- Voltage DC: 2000 VDC
- Measurement Condition: 1 kHz 1.0 Vrms
- Capacitance Tolerance: 5%
- Temperature Range: -55°C to +125°C
- Dielectric: COG
- Dissipation Factor: 0.1% at 1 kHz 1.0 Vrms
- Insulation Resistance: 100 GOhms
- Dimensions: Length 7.6mm ±0.4mm, Width 10.2mm ±0.4mm, Thickness 0.25mm ±0.2mm
- Chip Size: 3040, Shelf Life: 78 Weeks
- Termination: Tin
- Qualifies: AEC-Q200
- Compliance: RoHS
- Packaging: T&R, 180mm, Plastic Tape
- Operating Temperature: -55°C to +125°C
- Thermal Coefficient: COG
- Aging Rate: 0% Loss/Decade Hour
Buy the Buy KEMET High Voltage Ceramic Capacitor Part Number C3040C103JGGACAUTO Online
Purchase the KEMET high-voltage ceramic capacitor part number C3040C103JGGACAUTO online for your automotive projects. This 0.01 µF capacitor is rated for 2000 VDC, featuring ultra-stable low-loss performance with dielectric stability from -55°C to +125°C. Its compact size simplifies integration into dense automotive circuits, and it meets rigorous AEC-Q200 standards, ensuring dependable operation in challenging environments. Benefit from fast delivery, competitive prices, and trusted quality by ordering this high-quality capacitor today for your electrical system needs.
Order your KEMET Series3040 C3040C103JGGACAUTO high-voltage ceramic capacitor today and ensure reliable automotive electrical performance with premium quality components.
Frequently Asked Questions
Where can I buy KEMET C3040C103JGGACAUTO?
You can click on the BUY or RFQ button to purchase C3040C103JGGACAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C3040C103JGGACAUTO?
You can download the C3040C103JGGACAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C3040C103JGGACAUTO?
KEMET
