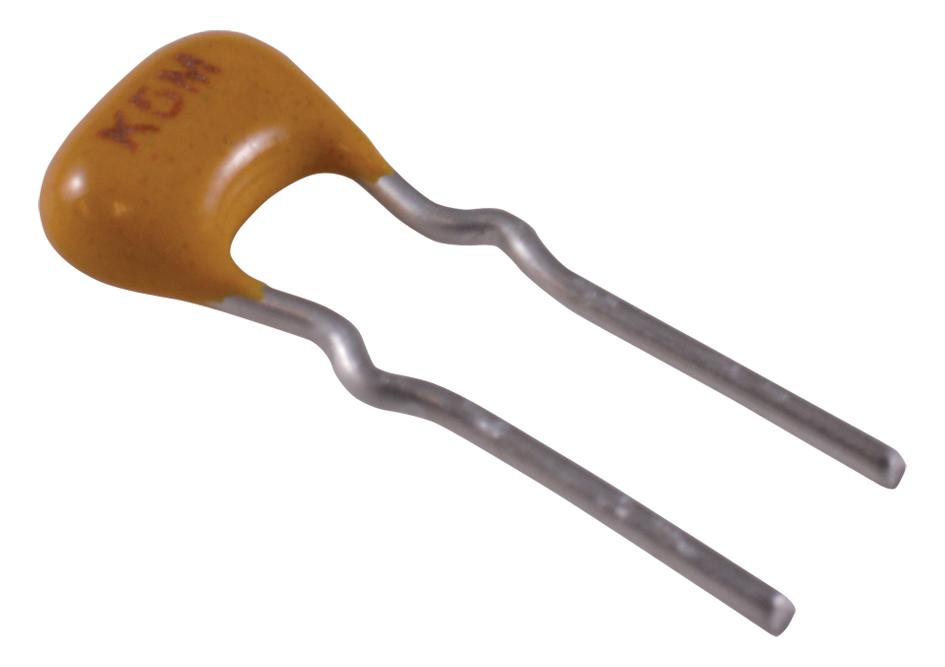

KEMET C315C102K1G5TA 1000pF Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor designed for a wide range of commercial applications. Its C0G dielectric provides excellent temperature stability and low signal loss, making it suitable for critical timing and filtering circuits. The capacitor's radial lead configuration allows for easy mounting on printed circuit boards. It is RoHS compliant and halogen-free, meeting environmental standards. Typical applications include decoupling, filtering, and timing circuits in consumer electronics, industrial equipment, and automotive systems.
KEMET C315C102K1G5TA 1000pF Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 1000 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
