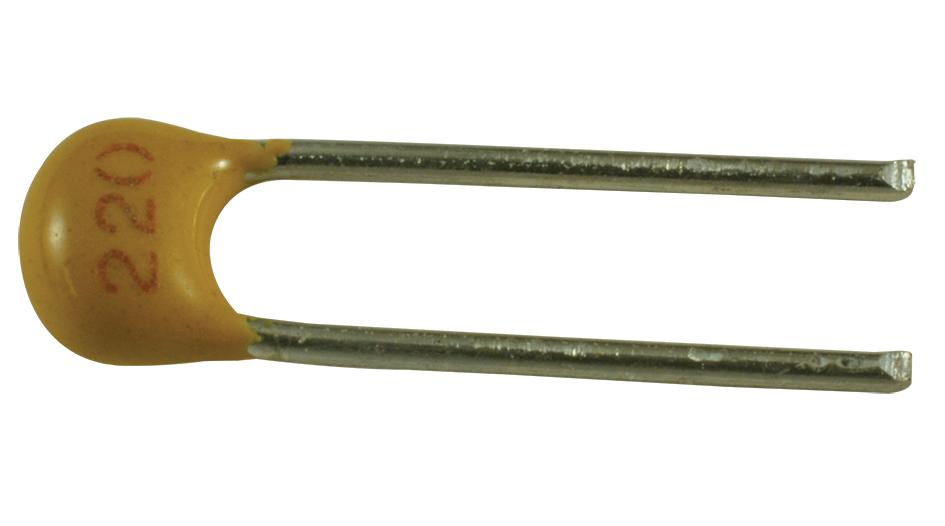

KEMET C315C220J5G5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G series capacitor is a multilayer ceramic capacitor designed for commercial applications. It offers high stability and low losses, making it ideal for decoupling, filtering, and timing circuits. The C0G dielectric provides excellent temperature characteristics, ensuring consistent performance over a wide temperature range. With a capacitance of 22pF and a voltage rating of 50VDC, this capacitor is a reliable choice for various electronic devices and systems. It is RoHS compliant and halogen free, meeting environmental standards.
KEMET C315C220J5G5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 22 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
