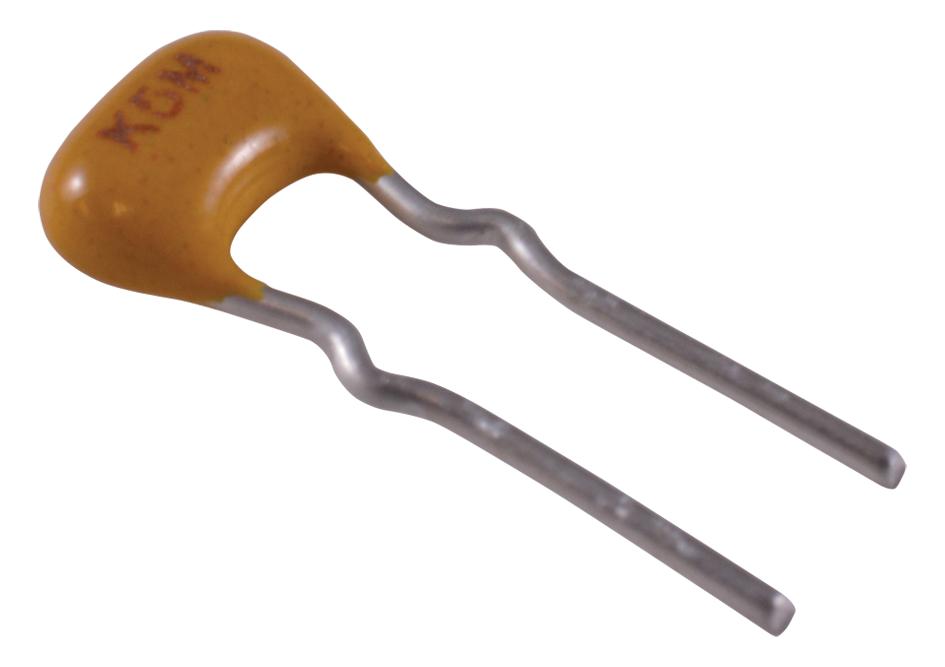

KEMET C315C222M1U5TA Ceramic Radial Capacitor
The KEMET GoldMax 300 Comm Z5U series ceramic capacitors are designed for a wide range of commercial applications requiring high reliability and stability. These capacitors offer excellent high-frequency performance and are suitable for decoupling, filtering, and timing circuits. The C315C222M1U5TA model features a capacitance of 2200pF, a voltage rating of 100VDC, and a Z5U dielectric, providing a good balance of capacitance and voltage performance. They are lead-spaced at 2.54mm and packaged in bulk quantities of 500.
KEMET C315C222M1U5TA Ceramic Radial Capacitor Specifications:
- Series: GoldMax 300 Comm Z5U
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 2200 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 20%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: +10/+85°C
- Temperature Coefficient: Z5U
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): +22%/-56%, 1kHz 1.0Vrms
- Dissipation Factor: 4% 1 kHz 1.0Vrms
- Aging Rate: 7% Loss/Decade Hour
- Insulation Resistance: 10 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
