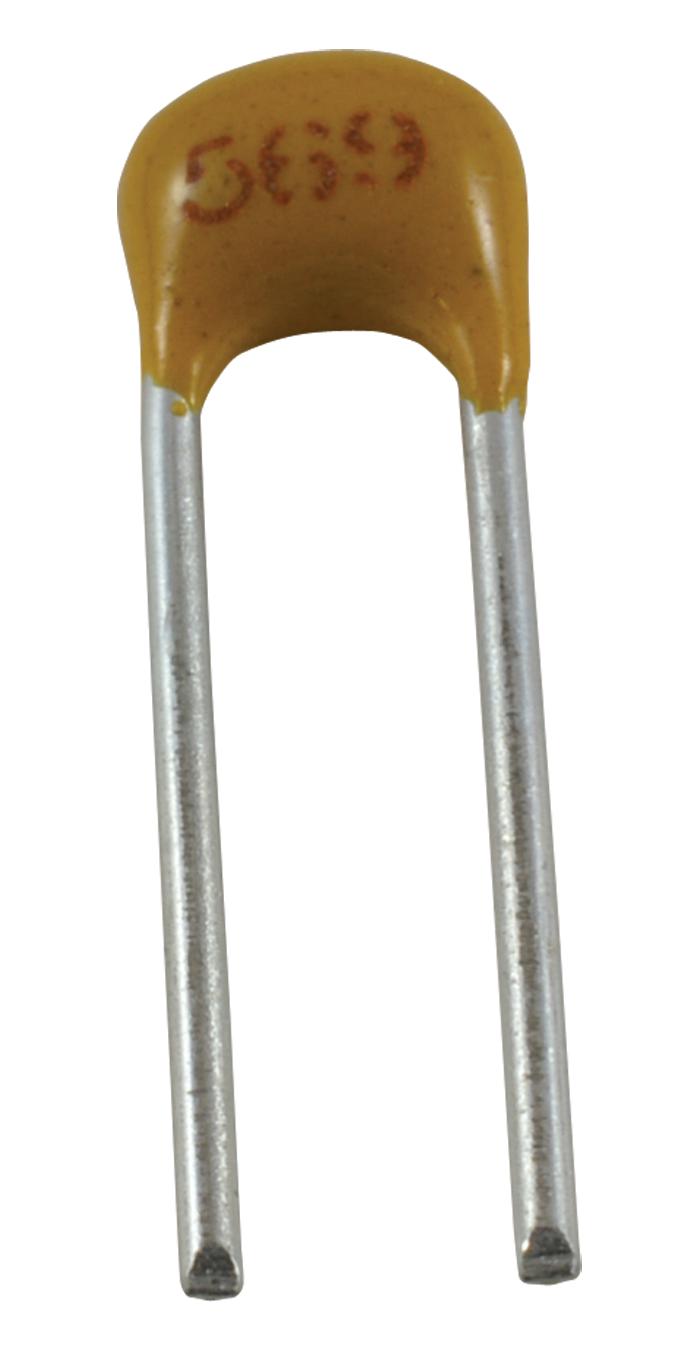

KEMET C315C569D2G5TA C0G Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor (MLCC) designed for commercial applications requiring high stability and reliability. With a capacitance of 5.6 pF and a tolerance of +/-0.5 pF, this capacitor offers precise capacitance values. Its C0G dielectric ensures low temperature coefficient and high Q factor, making it suitable for timing circuits, filters, and decoupling applications. The capacitor's radial leaded configuration allows for easy integration into various circuit designs. It is RoHS compliant and halogen free, meeting environmental standards. The KEMET C315C569D2G5TA is packaged in bulk and is ideal for a wide range of electronic devices and systems.
KEMET C315C569D2G5TA C0G Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 5.6 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: +/-0.5 pF
- Voltage DC: 200 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
