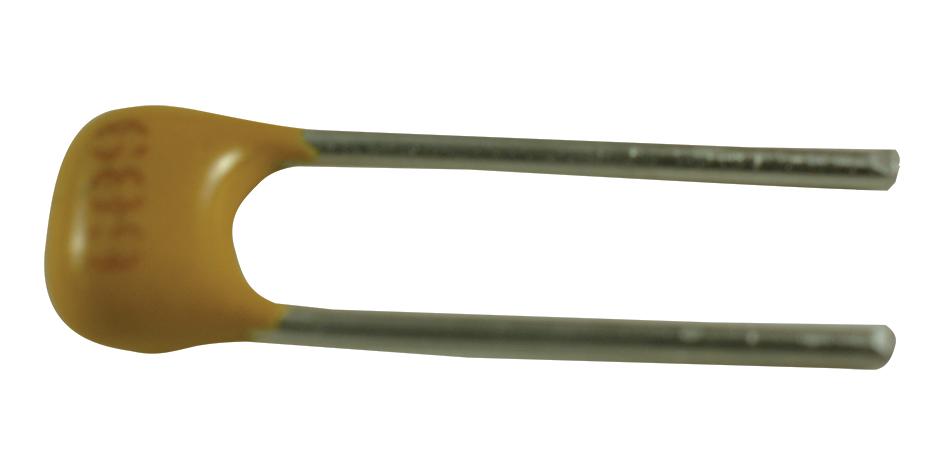

KEMET C315C689D2G5TA C0G Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor designed for commercial applications requiring high stability and reliability. It features a C0G dielectric, providing excellent temperature coefficient performance. Typical applications include decoupling, filtering, and timing circuits in a wide range of electronic devices. The capacitor's robust construction and high voltage rating make it suitable for demanding environments. KEMET emphasizes that suitability for specific applications is the customer's responsibility.
KEMET C315C689D2G5TA C0G Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 6.8 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: +/-0.5 pF
- Voltage DC: 200 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
