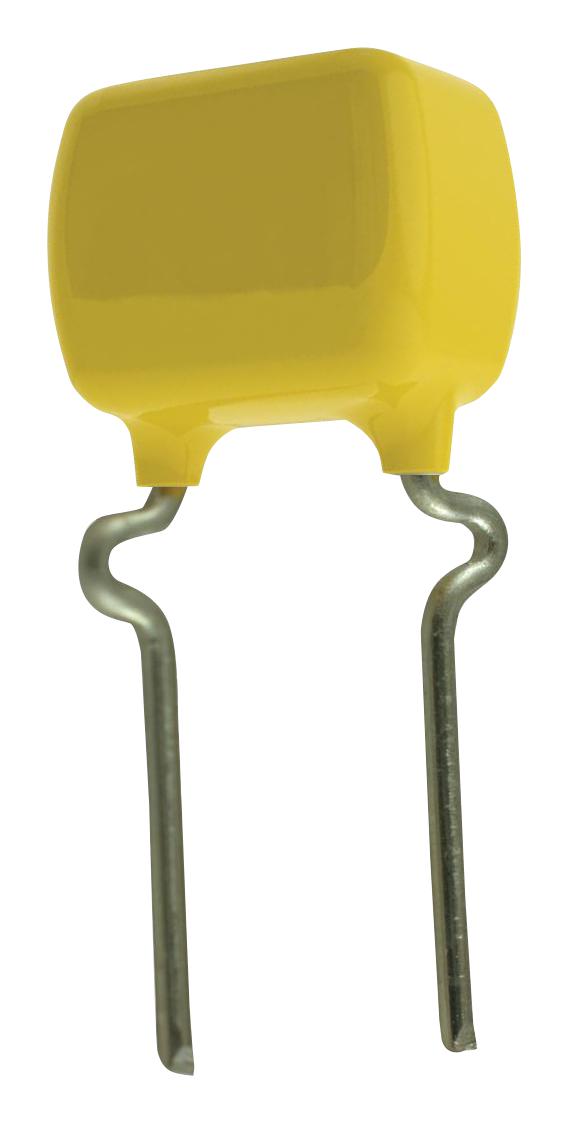

KEMET C316C151J5G5TA7303 Ceramic Capacitor
The GoldMax 300 Comm COG is a ceramic capacitor designed for commercial applications, offering 150 pF capacitance, 5% tolerance, and 50 VDC voltage rating. This radially styled component features tin termination, RoHS compliance, and halogen-free construction, making it suitable for various electronic devices. Its compact size with a maximum length of 3.81mm and height of 5.84mm ensures easy integration into circuit boards. With a dielectric constant of 125 and low dissipation factor of 0.10%, it provides reliable performance across temperature ranges from -55°C to +125°C and a dielectric wear time of 0% loss per decade hour.
KEMET C316C151J5G5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 150 pF
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dimensions: Length 3.81mm MAX, Height 5.84mm MAX, Tolerance 254mm MAX
- Dielectric: COG, dielectric constant 125
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.10% at 25°C
- Insulation Resistance: 100 GOhms
- Termination: Tin
- RoHS: Yes
- Halogen Free: Yes
Buy the KEMET C316C151J5G5TA7303 – Reliable Ceramic Capacitor for Industrial Applications
Purchase the KEMET ceramic capacitor series C316C151J5G5TA7303 online today and guarantee your electronic projects are equipped with high-quality, reliable components. This 150 pF ceramic capacitor features a 50 VDC voltage rating, 5% tolerance, and RoHS compliance, making it suitable for a wide range of industrial and commercial applications. Its compact design, low dissipation factor, and stable temperature range from -55°C to +125°C ensure optimal performance in demanding environments. Buy online now for quick delivery and technical support to meet your project needs.
Order your KEMET Series C316C151J5G5TA7303 ceramic capacitor today and enhance your electronic projects with dependable ceramic performance.
Frequently Asked Questions
Where can I buy KEMET C316C151J5G5TA7303?
You can click on the BUY or RFQ button to purchase C316C151J5G5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C316C151J5G5TA7303?
You can download the C316C151J5G5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C316C151J5G5TA7303?
KEMET
