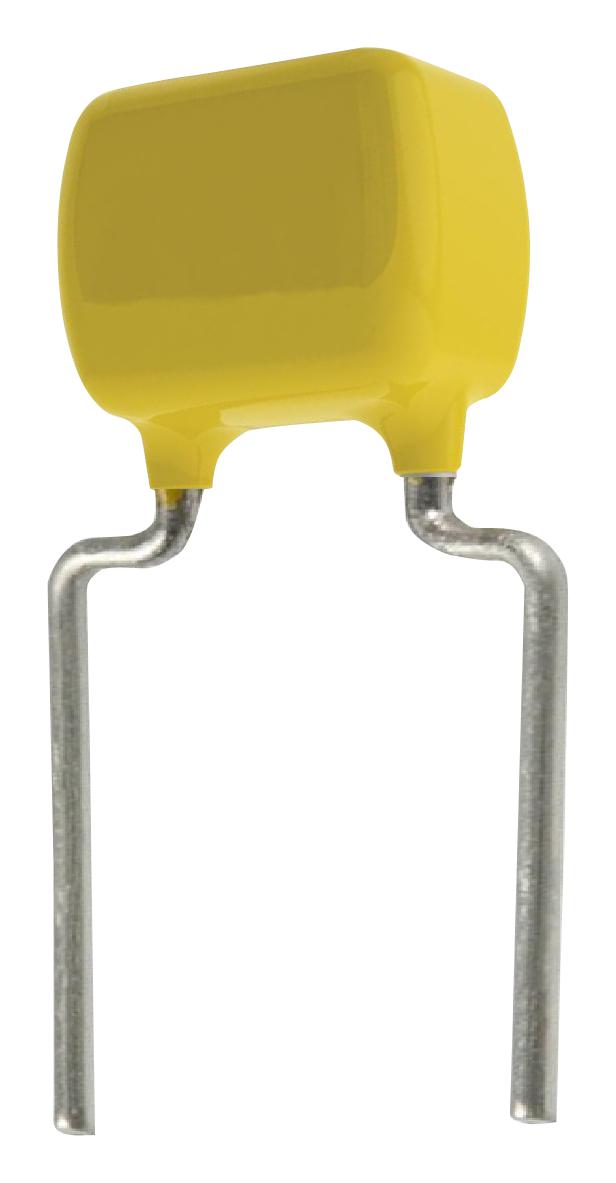

KEMET C317C104J5R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R capacitor is a high-performance ceramic component suitable for various electronic applications. It features a 0.1 uF capacitance with a 5% tolerance and a maximum voltage of 50 VDC. Designed with X7R dielectric material, it exhibits stable electrical characteristics over a temperature range of -55°C to +125°C. The radial termination ensures reliable connections, while its RoHS compliance and halogen-free materials make it environmentally friendly. Ideal for storage, decoupling, and filtering in commercial electronic devices, this capacitor offers high insulation resistance and consistent performance in demanding environments.
KEMET C317C104J5R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 0.1 uF
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Type: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: Length 3.81mm MAX, Height 5.08mm MAX, Tolerance +/- 0.78mm
- Dissipation Factor: 2.50% at 25°C
- Insulation Resistance: 10 GOhms
- Aging Rate: 3% loss per decade hour
- RoHS Compliant: Yes
- Termination: Tin
- Packaging: T&R, 305mm, Quantity: 2500
Buy the Buy KEMET GoldMax 300 Comm X7R Part Number C317C104J5R5TA7303 Online
Purchase the KEMET ceramic capacitor C317C104J5R5TA7303 online today to ensure your electronic device benefits from high stability, low loss, and robust performance. This 0.1 uF, 50 VDC X7R dielectric capacitor is perfect for application in decoupling, filtering, and storage, offering excellent insulation resistance and temperature stability. With RoHS compliance and environmentally friendly materials, it’s an ideal choice for commercial electronic systems. Order now and enjoy fast delivery, reliable quality, and seamless integration into your designs.
Buy KEMET C317C104J5R5TA7303 now and experience reliable high-performance ceramic capacitance for your electronic projects.
