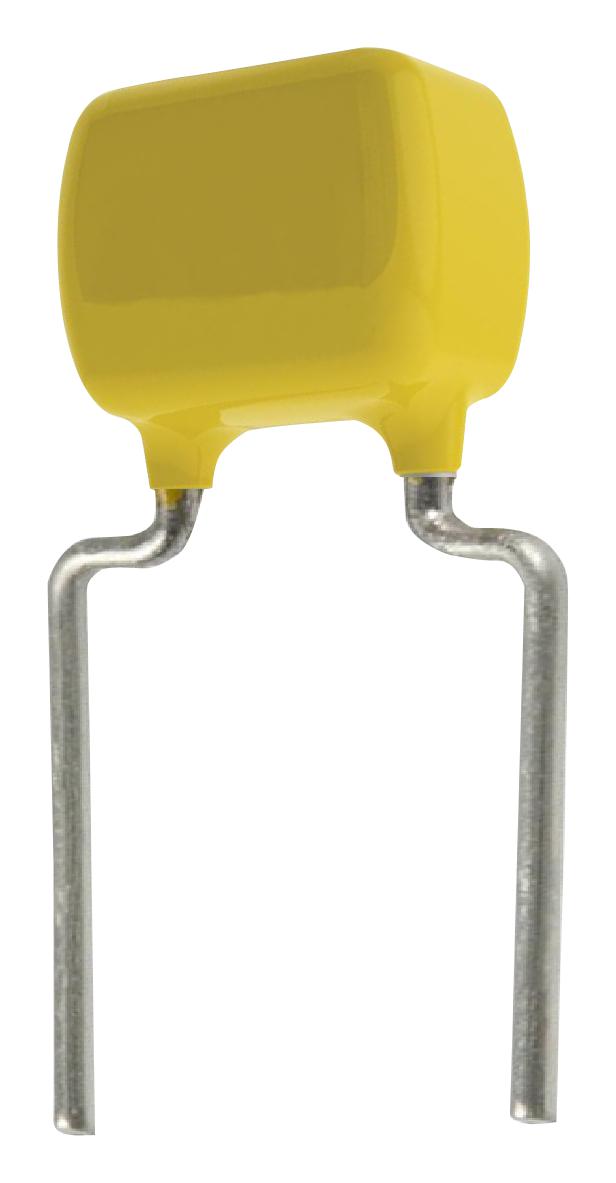

KEMET C317C333K1R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R capacitor is a 0.033 microfarad ceramic component designed for commercial applications. It features a voltage rating of 100 VDC, fitting into various electronic circuits with a wide temperature range of -55°C to +125°C. The capacitor has a dielectric of X7R, ensuring stable capacitance performance across temperature variations. Its radial style, tin termination, and RoHS compliance make it suitable for modern, environmentally responsible designs. Dimensions are compact, with a length of 3.81mm MAX, height of 5.08mm MAX, and thickness of 2.54mm MAX, ideal for space-constrained projects.
KEMET C317C333K1R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 0.033 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 100 VDC
- Dielectric: X7R, 250 VDC
- Temperature Range: -55°C to +125°C
- Dimensions: L 3.81mm MAX, H 5.08mm MAX, T 2.54mm MAX
- Termination: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Packaging: T&R, 305mm, Quantity: 2500 pcs
- Dissipation Factor: 2.5% at 1 kHz
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 30.3 GOhms
Buy the KEMET Series GoldMax 300 Comm X7R Ceramic Capacitor: C317C333K1R5TA7303
Experience the reliability and compact design of the KEMET GoldMax 300 Comm X7R ceramic capacitor. With a capacitance of 0.033 microfarads and a voltage rating of 100 VDC, this capacitor ensures stable performance across a wide temperature range of -55°C to +125°C. Its radial style and tin termination make it suitable for various electronic applications. Order online today and enhance your circuit designs with this RoHS-compliant, halogen-free, high-quality ceramic component that guarantees durability and consistent functionality in demanding environments.
Order your KEMET Series GoldMax 300 Comm X7R ceramic capacitor today and equip your electronic projects with reliable, high-performance components.
