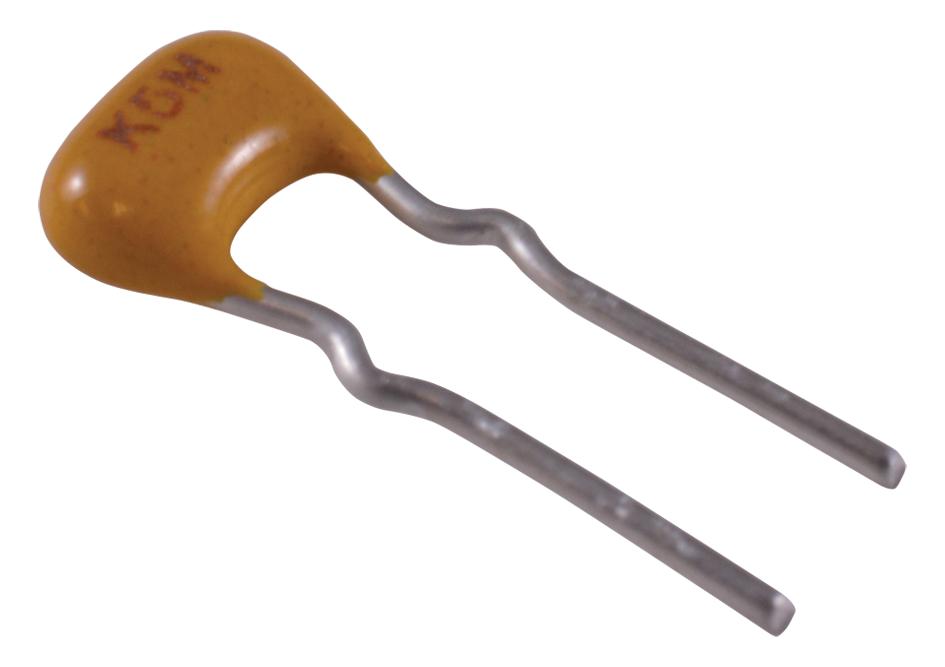

KEMET C317C360J5G5TA Ceramic Capacitor
The KEMET C317C360J5G5TA is a ceramic capacitor with a capacitance of 36 pF and a tolerance of 5%, designed for commercial applications. It features a cobalt dielectric with a voltage rating of 50 VDC and operates within a temperature range from -55°C to +125°C. The radial-lead component offers RoHS compliance, halogen-free construction, and tin termination. Its compact dimensions include a maximum length of 3.81mm, height of 5.08mm, and width of 2.54mm, making it suitable for precise electronic circuit designs requiring stability and reliability.
KEMET C317C360J5G5TA Ceramic Capacitor Specifications:
- Capacitance: 36 pF
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric: COG
- Temperature Range: -55°C to +125°C
- Measurement Condition: 1 MHz, 1.0 Vrms
- Dissipation Factor: 0.1% at 1 MHz, 1.0 Vrms
- Termination: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Dimensions: L 3.81mm MAX, H 5.08mm MAX, T 2.54mm MAX, s 5.08mm ±0.78mm, LL 7mm MIN, F 0.51mm +0.1/-0.025mm
Buy the KEMET C317C360J5G5TA – Reliable Ceramic Capacitor for Industrial Applications
Experience the reliable performance of the KEMET C317C360J5G5TA ceramic capacitor. With 36 pF capacitance, 50 VDC voltage rating, and operating from -55°C to +125°C, it is ideal for demanding industrial and commercial electronic applications. Its RoHS compliance, halogen-free design, and tin termination ensure environmental safety and durability. Compact and precise, this radial-lead component offers excellent stability, low dissipation factor, and high insulation resistance, making it the perfect choice for engineers and technicians seeking quality components for high-performance circuit designs.
Get KEMET C317C360J5G5TA today—built for precision, stability, and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy KEMET C317C360J5G5TA?
You can click on the BUY or RFQ button to purchase C317C360J5G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C360J5G5TA?
You can download the C317C360J5G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C360J5G5TA?
KEMET
