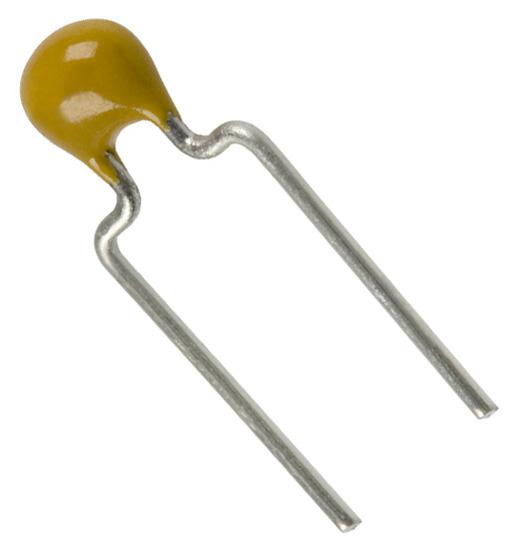

KEMET C317C391K1G5TA High-Voltage Ceramic Capacitor
The GoldMax 300 series ceramic capacitor is a 390 pF, 10% tolerance component rated at 100 VDC. Designed for commercial applications, it features a COG dielectric for stability over temperature. With a radial style, tin termination, and RoHS compliance, it measures up to 3.81mm in length, 5.08mm in height, and 2.54mm in thickness. Packaged in bulk quantities of 500, this capacitor offers excellent insulation resistance of 100 GOhms and operates reliably between -55°C and +125°C, making it suitable for a variety of electronic circuits.
KEMET C317C391K1G5TA High-Voltage Ceramic Capacitor Specifications:
- Capacitance: 390 pF
- Capacitance Tolerance: 10%
- Voltage DC: 100 VDC
- Dielectric: COG
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Dimensions: Length 3.81mm MAX, Height 5.08mm MAX, Thickness 2.54mm MAX, Lead Spacing 5.08mm +/- 0.78mm
- Shell Material: Ceramic
- Termination: Tin
- RoHS: Yes
- Packaging: Bulk, Bag, Quantity 500
Buy the Buy KEMET GoldMax 300 Part Number C317C391K1G5TA Online
Shop now for the KEMET GoldMax 300 ceramic capacitor, part number C317C391K1G5TA. With a capacitance of 390 pF, 10% tolerance, and rated at 100 VDC, it ensures reliable performance in a variety of electronic circuits. Its COG dielectric provides stability over temperature, while the tin termination and RoHS compliance support eco-friendly design. Measuring up to 3.81mm in length and 5.08mm in height, this high-quality capacitor is ideal for commercial and industrial applications requiring dependable performance and durability.
Buy KEMET GoldMax 300 part number C317C391K1G5TA now and experience reliable high-voltage ceramic capacitance for your electronic projects.
Frequently Asked Questions
Where can I buy KEMET C317C391K1G5TA?
You can click on the BUY or RFQ button to purchase C317C391K1G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C391K1G5TA?
You can download the C317C391K1G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C391K1G5TA?
KEMET
