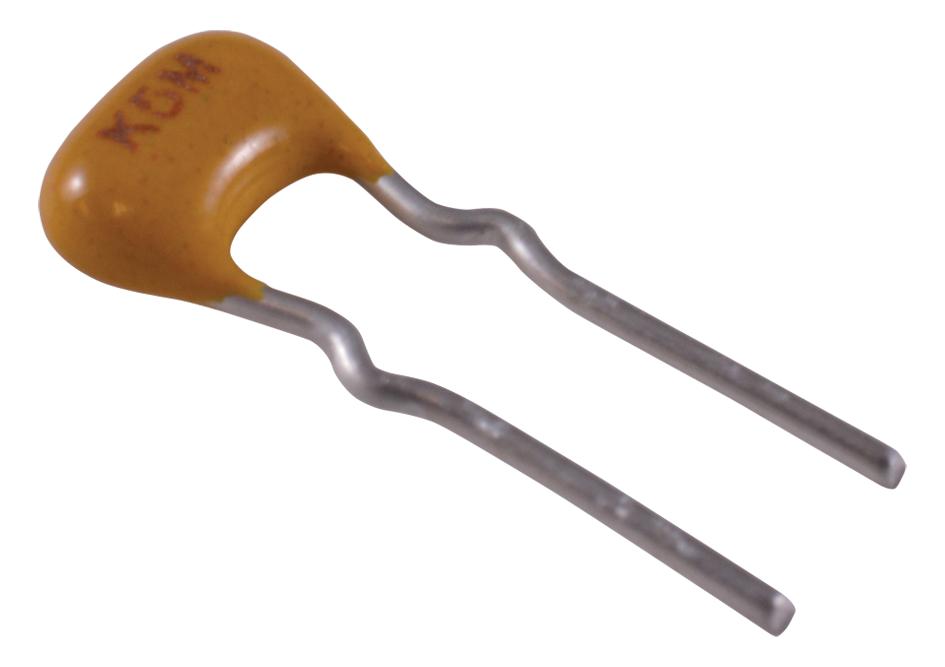

KEMET C320C104J5R5TA7301 Ceramic Capacitor
The KEMET C320C104J5R5TA7301 is a high-quality ceramic capacitor with a capacitance of 0.1 uF and a voltage rating of 50 VDC, designed for reliable performance in industrial applications. It features X7R dielectric material, a capacitance tolerance of 5%, and operates within a temperature range of -55°C to +125°C. The radial leaded component has dimensions of approximately 5.08mm in length, 5.84mm in height, and 3.18mm in thickness, with lead spacing of 2.54mm. Suitable for use in commercial standard electronic circuits, it is RoHS compliant and halogen free.
KEMET C320C104J5R5TA7301 Ceramic Capacitor Specifications:
- Capacitance: 0.1 uF
- Voltage DC: 50 VDC
- Dielectric: X7R
- Capacitance Tolerance: 5%
- Temperature Range: -55°C to +125°C
- Dimensions: Length 5.08mm MAX, Height 5.84mm MAX, Thickness 3.18mm MAX, Lead Spacing 2.54mm
- Material: Ceramic
- Termination: Tin
- RoHS: Yes
- Halogen Free: Yes
- Dissipation Factor: 2.5% at 1 kHz
- Aging Rate: 3% per decade hour
- Insulation Resistance: 10 GOhms
Buy the KEMET C320C104J5R5TA7301 – Reliable Ceramic Capacitor for Industrial Applications
Order the KEMET C320C104J5R5TA7301 ceramic capacitor online now. With 0.1 uF capacitance, 50 VDC rating, X7R dielectric, and a wide temperature range, this reliable radial capacitor ensures high performance in industrial electronics. RoHS compliant and halogen free, it offers excellent stability, low dissipation factor, and resistance suitable for demanding applications. Purchase easily online for quick delivery and integrate this high-quality component into your electronic designs for durable and efficient circuit performance.
Get KEMET C320C104J5R5TA7301 today—built for precision and long-lasting durability in your electronic systems.
Frequently Asked Questions
Where can I buy KEMET C320C104J5R5TA7301?
You can click on the BUY or RFQ button to purchase C320C104J5R5TA7301 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C320C104J5R5TA7301?
You can download the C320C104J5R5TA7301 datasheet or visit the KEMET website for support.
Who is the manufacturer of C320C104J5R5TA7301?
KEMET
