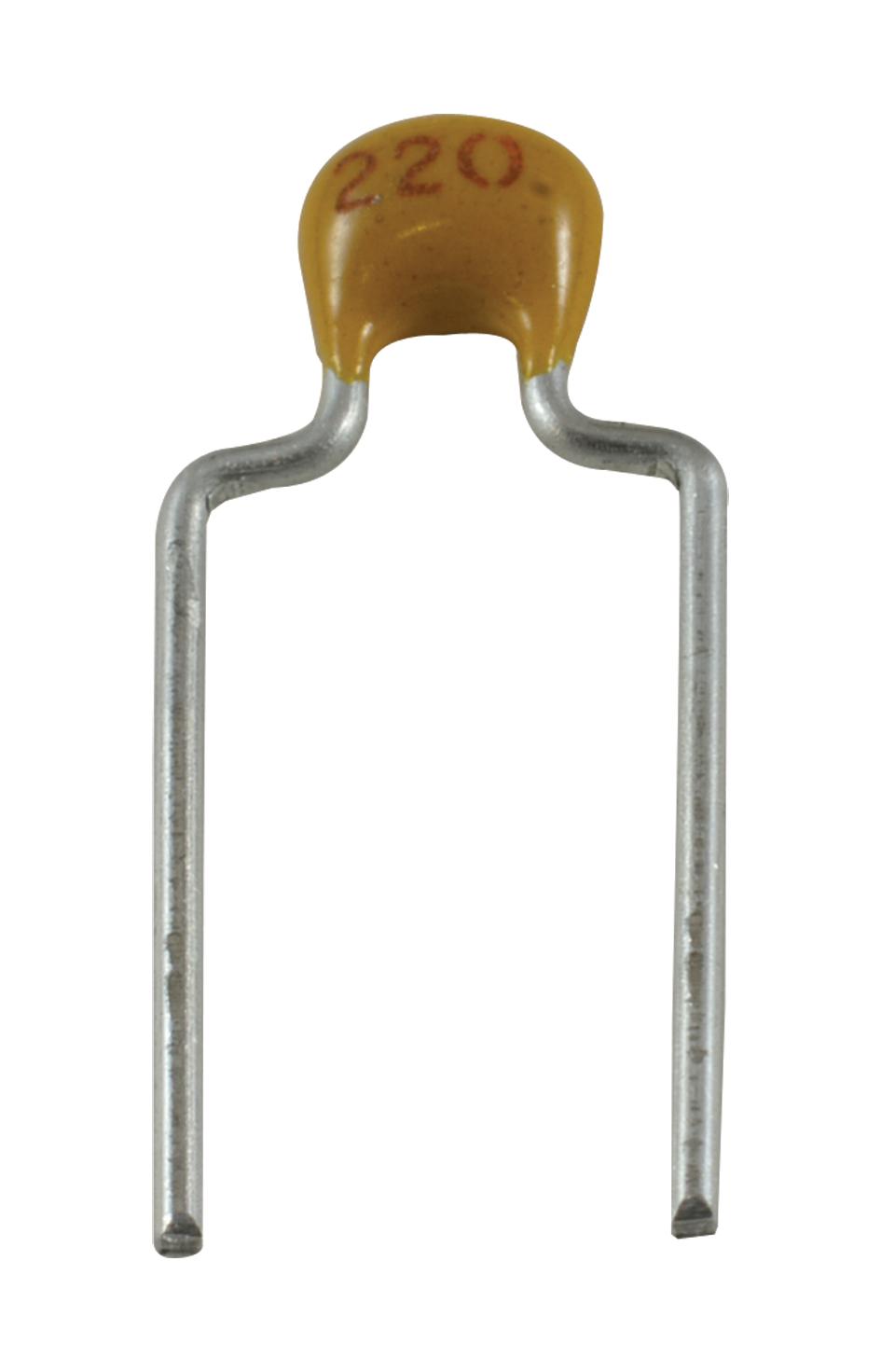

KEMET C322C220J2G5TA Ceramic Capacitor
KEMET's Goldmax conformally coated radial leaded ceramic capacitors feature a C0G dielectric with a maximum operating temperature of 125°C. These Class I 'stable' capacitors are designed for resonant circuits and high-stability applications, exhibiting negligible capacitance change over time and voltage. They have extremely low ESR and ESL, high thermal stability, and high ripple current capability. The capacitors are epoxy-encapsulated, non-polar, meet UL Standard 94V-0 flame test, and have capacitance values from 1pF to 0.47μF with voltage ratings up to 250V. Their dimensions are 5.08mm x 6.6mm with a 5.08mm pitch spacing.
KEMET C322C220J2G5TA Ceramic Capacitor Specifications:
- Capacitance: 22 pF
- Capacitance Tolerance: 5%
- Voltage DC: 200 VDC
- Dielectric: C0G (NP0)
- Temperature Range: -55°C to +125°C
- Dimensions: 5.08mm x 6.60mm
- Lead Spacing: 5.08mm
- Terminals: Tin-plated
- RoHS Compliant: Yes
- Halogen Free: Yes
- Measurement Condition: 1 MHz 1.0Vrms
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Aging Rate: 0% Loss per Decade Hour
- Insulation Resistance: 100 GΩ
- Temperature Coefficient: C0G
- Failure Rate: N/A
- Series: GoldMax 300 Comm COG
Buy the Buy KEMET Ceramic Capacitor Part Number C322C220J2G5TA Online
Purchase the KEMET ceramic capacitor C322C220J2G5TA online today to ensure high stability and precision in your electronic designs. These capacitors feature a C0G dielectric with a maximum temperature of 125°C, offering excellent thermal stability and low ESR. Perfect for resonant circuits, they come with a voltage rating of 200V, a capacitance of 22pF, and a 5% tolerance. Their compact dimensions of 5.08mm x 6.60mm and lead spacing of 5.08mm make them ideal for space-constrained applications demanding reliable high-frequency performance.
Get KEMET C322C220J2G5TA today—designed for high stability and low ESR in resonant and precision circuits.
Frequently Asked Questions
Where can I buy KEMET C322C220J2G5TA?
You can click on the BUY or RFQ button to purchase C322C220J2G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C322C220J2G5TA?
You can download the C322C220J2G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C322C220J2G5TA?
KEMET
