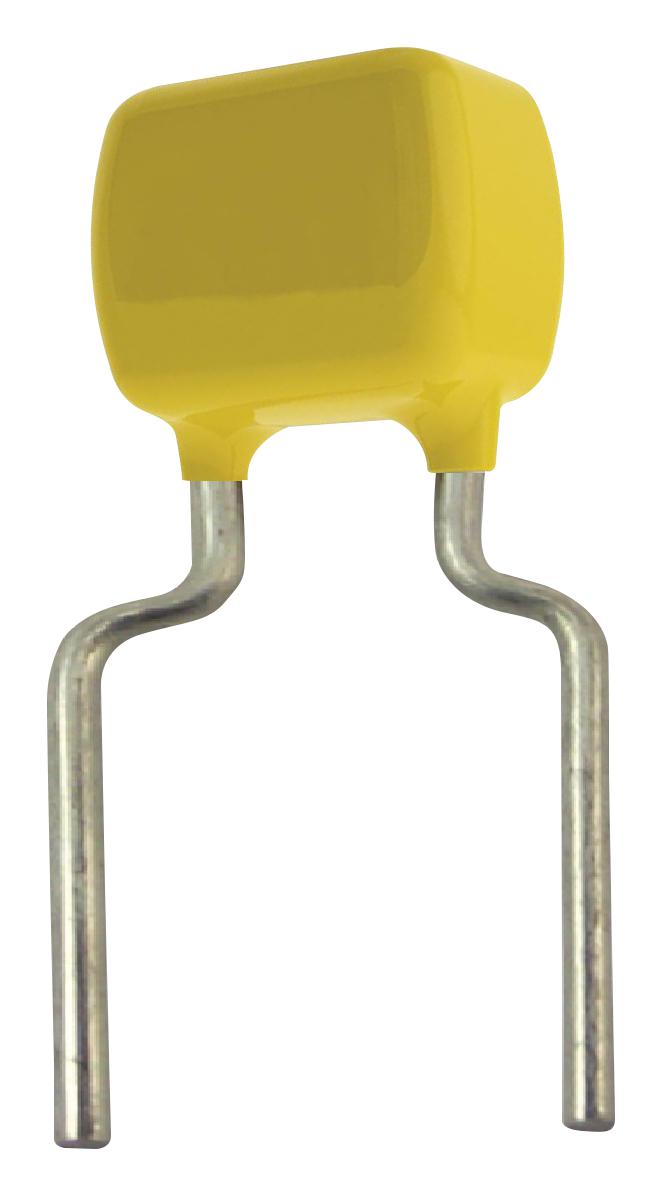

KEMET C328C474K5R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R capacitor offers 0.47 microfarads of capacitance with a 10% tolerance, rated for 50 VDC, and operates within -55°C to +125°C. Featured in a radial style with tin termination, it complies with RoHS standards and is halogen-free. Designed for commercial applications, it has a dielectric withstanding voltage, insulation resistance of 210 MOhms, and a dissipation factor of 2.50% at 25°C. Its compact size includes a length of 5.08mm and a height of 7.62mm, suitable for various electronic systems.
KEMET C328C474K5R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric: X7R
- Operating Temperature Range: -55°C to +125°C
- Dimensions: Length 5.08mm, Height 7.62mm, Lead Spacing 5.08mm
- Termination: Tin
- Dissipation Factor: 2.50% at 25°C
- Insulation Resistance: 210 MOhms
- Aging Rate: 3% Loss/Decade Hour
Buy the KEMET C328C474K5R5TA7303 – Reliable Ceramic Capacitor for Industrial Applications
Enhance your electronic designs with this high-quality ceramic capacitor designed for reliability and stability. Rated at 50VDC with X7R dielectric, it features a compact radial form with tin termination, RoHS compliance, and excellent insulation resistance. Suitable for diverse industrial applications, its robust construction ensures durability across a broad temperature range. With a capacitance of 0.47 microfarads and a 10% tolerance, this capacitor is ideal for power filtering, decoupling, and timing circuits, ensuring optimal performance and longevity in demanding electronic systems.
Buy KEMET C328C474K5R5TA7303 now and experience unmatched reliability, high-temperature stability, and excellent dielectric performance for your electronic projects.
