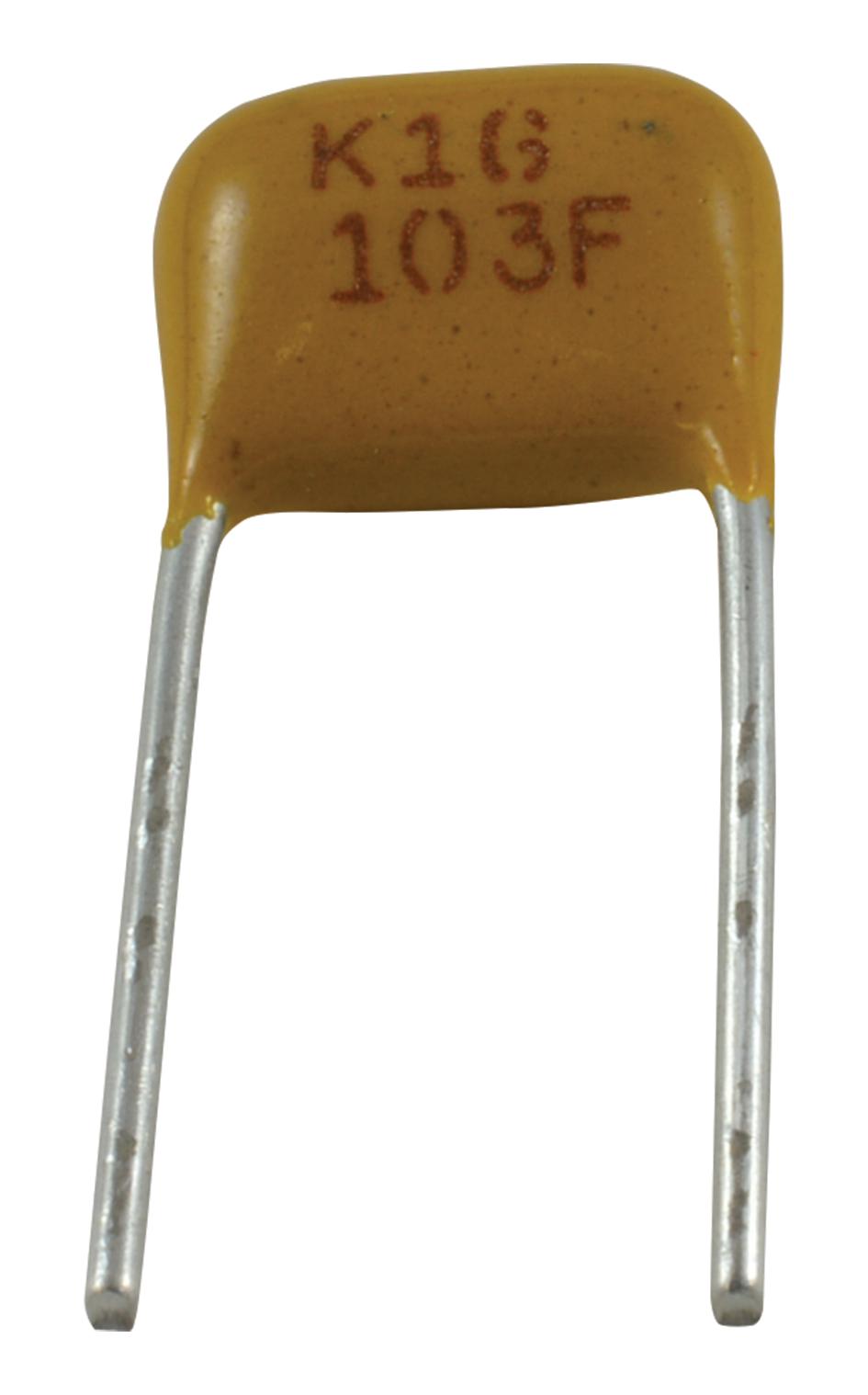

KEMET C330C103F1G5TA Ceramic Capacitor
KEMET's GoldMax 300 COG ceramic capacitor features a 0.01 uF capacitance with 1% tolerance, rated at 100 VDC. Designed with a C0G dielectric, it offers high stability, low loss, and negligible capacitance change over temperature and voltage. Suitable for resonant circuits, it has a maximum operating temperature of 125°C and an extremely low ESR and ESL. The radial leaded device is RoHS compliant, halogen-free, with dimensions approximately 7.1mm max length and 5.08mm lead spacing, ideal for high-reliability applications needing precise performance.
KEMET C330C103F1G5TA Ceramic Capacitor Specifications:
- Capacitance: 0.01 uF
- Capacitance Tolerance: 1%
- Voltage DC: 100 VDC
- Dielectric: COG
- Temperature Range: -55°C to +125°C
- Maximum Dimensions: 7.1mm length, 5.08mm lead spacing
- RoHS: Yes
- Halogen Free: Yes
- Termination: Tin
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Temperature Coefficient: COG, approximately ±30 ppm/°C
- Aging Rate: 0% loss per decade hour
- Measurement Condition: 1 MHz, 1.0 Vrms
Buy the KEMET C330C103F1G5TA – Reliable Ceramic Capacitor for Industrial Applications
Purchase the KEMET GoldMax 300 COG ceramic capacitor online today for reliable performance in industrial and electronic applications. With a 0.01 uF capacitance, 1% tolerance, and 100 VDC rating, this high-stability component features a C0G dielectric, ensuring minimal change over temperature and voltage. Its RoHS compliance, halogen-free design, and low ESR make it perfect for resonant circuits, filters, and timing devices. Buy online for quick delivery, secure ordering, and the confidence of using proven high-quality components in your systems.
Order your KEMET Series C330C103F1G5TA ceramic capacitor today and ensure your projects achieve high stability and low loss performance.
Frequently Asked Questions
Where can I buy KEMET C330C103F1G5TA?
You can click on the BUY or RFQ button to purchase C330C103F1G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C330C103F1G5TA?
You can download the C330C103F1G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C330C103F1G5TA?
KEMET
