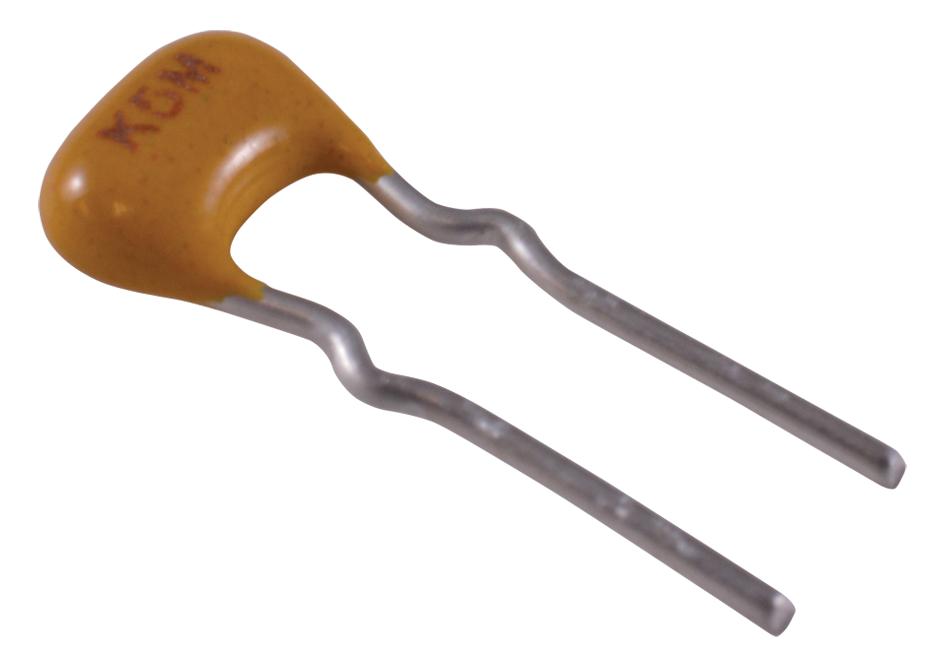

KEMET C330C273J1G5TA Ceramic Capacitor
KEMET's Goldmax conformally coated radial leaded ceramic capacitors feature a C0G (NP0) dielectric, offering high stability and low losses up to 125°C. These capacitors exhibit negligible capacitance change over time and voltage, with a tolerance of 5% and a voltage rating of 100 VDC. Designed for high-frequency, resonant, and precision applications, they have low ESR and ESL, ensuring reliable performance in demanding environments. Compact and non-polar, their dimensions are approximately 7.1mm maximum length, 5.08mm lead spacing, and 0.51mm tolerance. RoHS compliant, with tin termination, suitable for various electronics requiring stable dielectric performance.
KEMET C330C273J1G5TA Ceramic Capacitor Specifications:
- Capacitance: 0.027 uF
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric: C0G (NP0)
- Temperature Range: -55/+125°C
- Temperature Coefficient: COG
- Dissipation Factor: 0.1% at 1 MHz
- Measurement Condition: 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 37.04 GOhms
- Dimensions: Max Length 7.1mm, Max Width 5.08mm, Lead Spacing ±0.78mm, Height 3.14mm
- Terminals: Tin-plated, leaded
- RoHS Compliant: Yes
- Packaging: Bulk, Bag, Quantity 250
- Style: Radial
- Halogen Free: Yes
Buy the KEMET Series GoldMax 300 COG Ceramic Capacitor: C330C273J1G5TA
Purchase KEMET Ceramic Capacitor C330C273J1G5TA online today and ensure your electronic projects benefit from high stability, low ESR, and RoHS compliance. Designed for precision circuits with a 0.027μF capacitance, 100V voltage rating, and a temperature range of -55 to +125°C, this ceramic capacitor offers reliable performance under demanding conditions. Its low dissipation factor and negligible change over time make it ideal for resonant and high-frequency applications. Secure your order now for fast delivery and exceptional quality for your electronics needs.
Buy KEMET C330C273J1G5TA now and experience unmatched stability and low losses for high-frequency applications.
Frequently Asked Questions
Where can I buy KEMET C330C273J1G5TA?
You can click on the BUY or RFQ button to purchase C330C273J1G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C330C273J1G5TA?
You can download the C330C273J1G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C330C273J1G5TA?
KEMET
