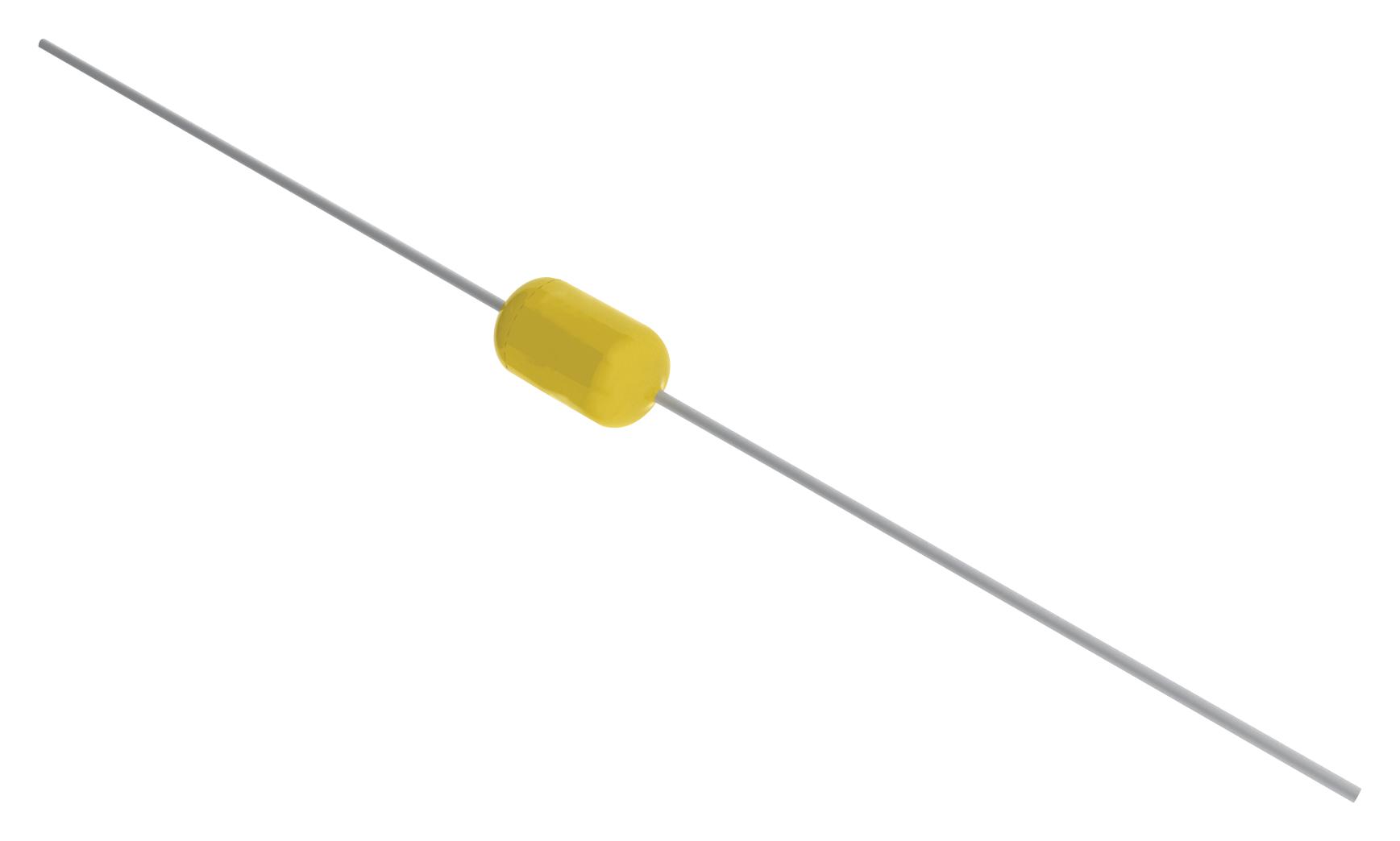

KEMET C412C334M5U5TA7200 Ceramic Capacitor
The KEMET AxiMax 400 Comm Z5U capacitor provides high reliability with a capacitance of 0.33 microfarads at 50 volts DC, featuring a Z5U dielectric and a capacitance tolerance of ±20%. Designed for commercial applications, it maintains stable performance with a maximum dimension of 3.05mm in diameter and 52.4mm in length. Its dielectric material offers a temperature range of +10°C to +85°C, with low dissipation factor and aging rate, making it suitable for electronics requiring stable, high-quality ceramic capacitance in various circuit configurations.
KEMET C412C334M5U5TA7200 Ceramic Capacitor Specifications:
- Capacitance: 0.33 uF
- Voltage DC: 50 VDC
- Capacitance Tolerance: 20%
- Dielectric: Z5U
- Temperature Range: +10°C to +85°C
- Dissipation Factor: 4% at 1 kHz
- Capacitance Change with Temperature: +22%/-56% at 25°C
- Aging Rate: 7% loss per decade hour
- Dielectric Measurement Condition: 1 kHz, 1.0 Vrms
- Terminations: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Maximum Dimensions: D 3.05mm, L 52.4mm, F 0.51mm
- Packaging: T&R, 305mm reel, 5000 units per reel
- Insulation Resistance: 300 MΩ
Buy the Buy KEMET AxiMax 400 Comm Z5U Part Number C412C334M5U5TA7200 Online
Purchase the KEMET Ceramic Capacitor, model C412C334M5U5TA7200, online today for your electronic projects. With a capacitance of 0.33 microfarads at 50 volts DC, it features Z5U dielectric and a tolerance of ±20%. Compact and reliable, it is designed for commercial use, with dimensions D 3.05mm and L 52.4mm. Suitable for applications needing stable performance over a temperature range of +10°C to +85°C, offering low dissipation factor and excellent aging characteristics for long-term durability.
Get KEMET C412C334M5U5TA7200 today—built for precision and long-lasting durability in high-reliability electronics.
