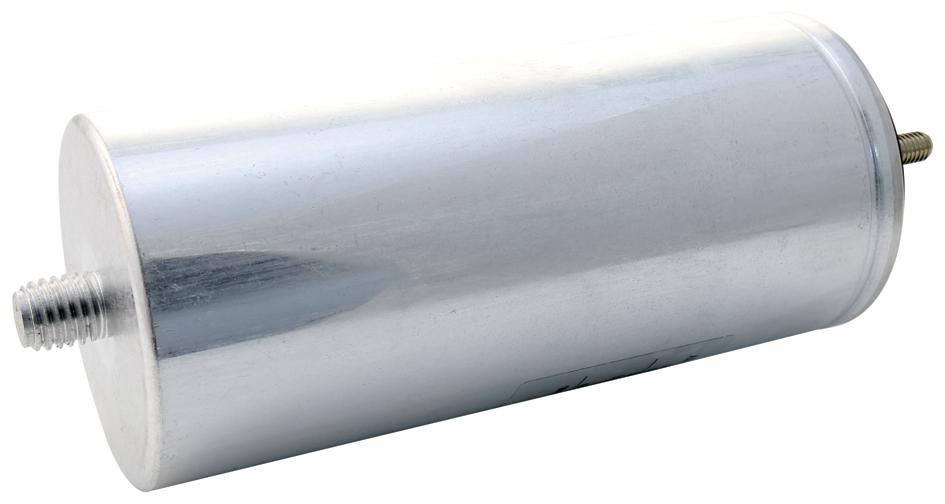

KEMET C44APFP4200ZD0J Power Film Capacitor
This power film capacitor features a metallized polypropylene dielectric with a capacitance of 2 uF and a 5% tolerance. It operates at 500 VAC and 1200 VDC, suitable for high-voltage applications. The can-style capacitor measures approximately 45mm in diameter with threaded M6 studs for mounting. It offers a temperature range of -40°C to +85°C, with a thermal resistance of 17.7°C/W. Designed for reliability, it is ideal for power electronics and industrial systems demanding durable, high-performance capacitors.
KEMET C44APFP4200ZD0J Power Film Capacitor Specifications:
- Capacitance: 2 uF
- Capacitance Tolerance: 5%
- Voltage AC: 500 VAC
- Voltage DC: 1200 VDC
- Dimensions: Diameter 45mm +/-0.5mm
- Mounting: Threaded M6 studs
- Operating Temperature: -40°C to +85°C
- Thermal Resistance: 17.7°C/W
- Maximum dV/dt: 300 V/us
- Ripple Current: 15 Amps, Peak 600 Amps
- Resistance: 2.5 mOhms (typical)
Buy the Buy KEMET Power Film Capacitor Part Number C44APFP4200ZD0J Online
Purchase the KEMET Power Film Capacitor designed for high-voltage power systems. This 2 uF capacitor operates at 500 VAC and 1200 VDC, with M6 threaded studs for easy mounting. Its temperature range from -40°C to +85°C ensures consistent performance in demanding environments. With a thermal resistance of 17.7°C/W and ripple current capacity of 15 Amps, it offers excellent durability and efficiency. Ideal for industrial, power electronics, and demanding electronic applications requiring reliable, long-lasting components.
Get KEMET C44APFP4200ZD0J today—built for high-voltage power applications with reliable performance and durable construction.
