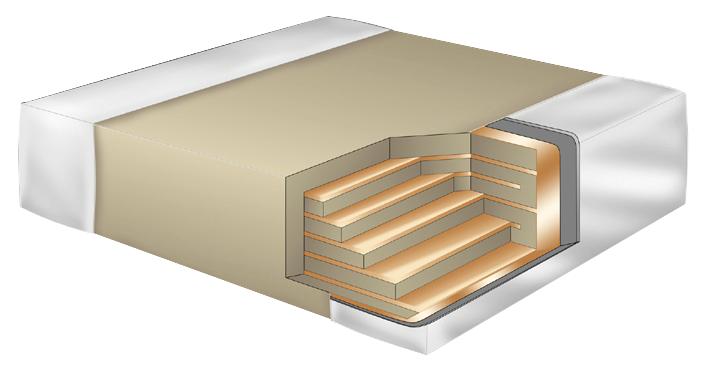

KEMET CBR06C109BAGAC RF Capacitor
The ceramic RF chip capacitor is designed for high-frequency applications requiring ultra high Q and low ESR. Measuring 0603 in size, it offers a capacitance of 1 pF with a tolerance of ±0.1 pF and a maximum voltage of 250 VDC. This component features a dielectric withstand voltage of 500 VDC, operating within a temperature range of -55°C to +125°C. It is RoHS compliant, tin-terminated, and suitable for solder wave or reflow assembly, making it ideal for precise RF circuit tuning and high-frequency filtering.
KEMET CBR06C109BAGAC RF Capacitor Specifications:
- Size: 0603 (1.6mm x 0.8mm)
- Capacitance: 1 pF
- Capacitance Tolerance: ±0.1 pF
- Voltage DC: 250 VDC
- Dielectric Voltage: 500 VDC
- Operating Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.238%
- Insulation Resistance: 10 GOhms
- Quality Factor: 420
- RoHS compliant: Yes
- Terminations: Tin
- Shelf Life: 78 weeks
- Packaging: T&R, 180mm plastic tape
- Maximum Temperature Coefficient: Not specified
- Material: Ceramic dielectric
- Package Quantity: 72,000 units
- Suggested Use: RF filtering, high-frequency circuits
Buy the YAGEO CBR6C109BAGAC – Reliable RF Capacitor for Industrial Applications
Enhance your RF circuit performance with the high-quality ceramic RF capacitor, featuring 1 pF capacitance and 250 VDC rating. Its ultra high Q and low ESR make it ideal for high-frequency filtering and tuning applications. Designed in a compact 0603 package, it provides excellent stability across temperatures from -55°C to +125°C and meets RoHS standards for environmental compliance. Whether for manufacturing or repair, this capacitor's reliable performance ensures your electronic projects operate smoothly and efficiently. Purchase online now for immediate, secure delivery.
Order your YAGEO Series CBR6C109BAGAC high-frequency RF capacitor today and ensure precise performance in your RF circuits with trusted quality.
Frequently Asked Questions
Where can I buy KEMET CBR06C109BAGAC?
You can click on the BUY or RFQ button to purchase CBR06C109BAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C109BAGAC?
You can download the CBR06C109BAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C109BAGAC?
KEMET
