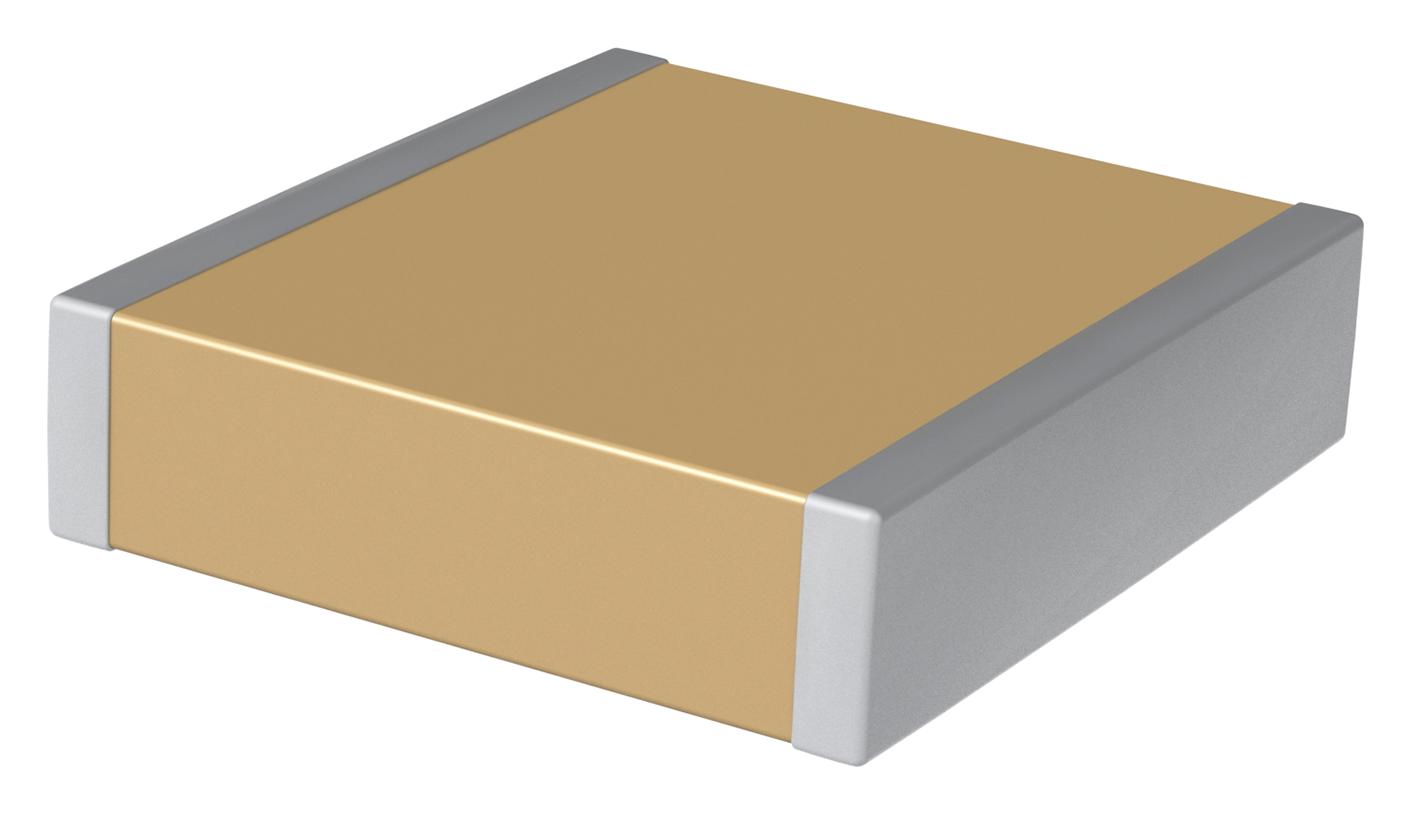

KEMET CKC18C473JWGACAUTO Automotive Ceramic Capacitor
The KEMET CKC18C473JWGACAUTO is a multilayer ceramic capacitor (MLCC) from the KC-LINK Auto C0G series, specifically engineered for demanding automotive applications. Its ultra-stable C0G dielectric ensures minimal capacitance variation over temperature and voltage, while its low-loss characteristics contribute to efficient circuit operation. The AEC-Q200 qualification guarantees performance and reliability under automotive operating conditions. This component is packaged in tape and reel format for automated assembly and is suitable for a wide range of automotive electronics, including power supplies, DC-DC converters, and sensor circuits. Its robust design and high voltage rating make it a dependable choice for critical automotive systems.
KEMET CKC18C473JWGACAUTO Automotive Ceramic Capacitor Specifications:
- Series: KC-LINK Auto C0G
- Style: SMD Chip
- Description: SMD, MLCC, Ultra-Stable, Low Loss, High Voltage, Automotive Grade
- Features: Ultra-Stable, Low Loss, Automotive Grade
- RoHS: Yes
- Termination: Tin
- Marking: No
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Component Weight: 87 mg
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size: 1812
- L: 4.7mm +/-0.3mm
- W: 3.2mm +/-0.3mm
- T: 2.5mm +/-0.20mm
- B: 0.6mm +/-0.35mm
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 500
- Capacitance: 0.047 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 650 VDC
- Dielectric Withstanding Voltage: 845 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 21.2766 GOhms
