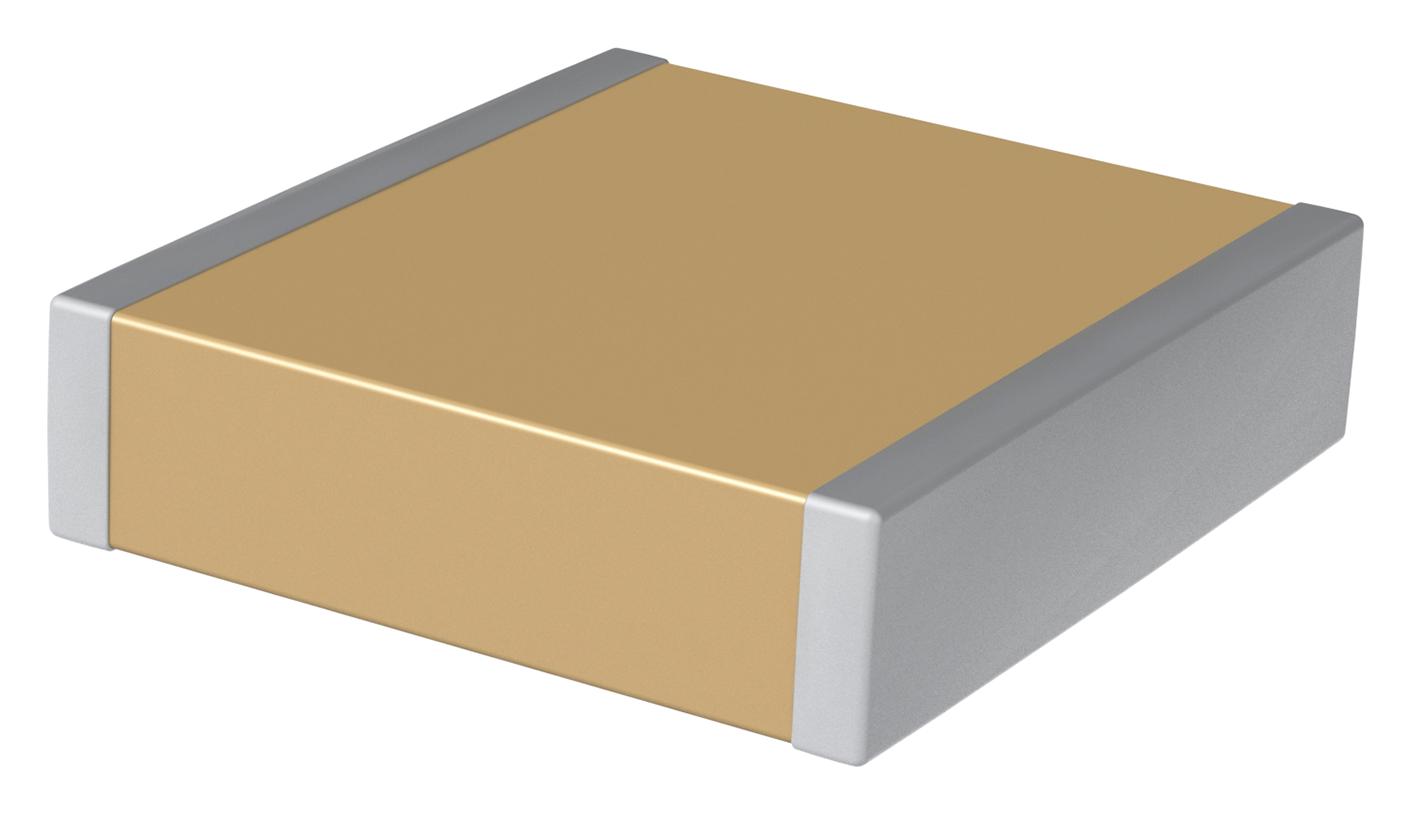

KEMET CKC21C333JDGACAUTO Ceramic Capacitor
The KEMET CKC21C333JDGACAUTO is a high-performance ceramic capacitor specifically engineered for demanding automotive applications. Its C0G dielectric provides exceptional stability across temperature and voltage variations, ensuring reliable operation in harsh environments. The capacitor's low loss characteristics and high voltage rating make it suitable for power supply circuits, filtering, and decoupling applications in automotive electronics. It is AEC-Q200 qualified, demonstrating its compliance with automotive quality standards, and is available in a compact 2220 SMD package for easy integration into circuit boards. The capacitor's robust construction and reliable performance contribute to the overall longevity and performance of automotive systems.
KEMET CKC21C333JDGACAUTO Ceramic Capacitor Specifications:
- Series: KC-LINK Auto C0G
- Style: SMD Chip
- Description: SMD, MLCC, Ultra-Stable, Low Loss, High Voltage, Automotive Grade
- Features: Ultra-Stable, Low Loss, Automotive Grade
- RoHS: Yes
- Termination: Tin
- Marking: No
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Component Weight: 320 mg
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size L: 2220 (5.9mm +/-0.4mm)
- Chip Size W: 5mm +/-0.4mm
- Chip Size T: 2.5mm +/-0.20mm
- Chip Size B: 0.6mm +/-0.35mm
- Capacitance: 0.033 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 1000 VDC
- Dielectric Withstanding Voltage: 1200 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC: 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 30.303 GOhms
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 500
