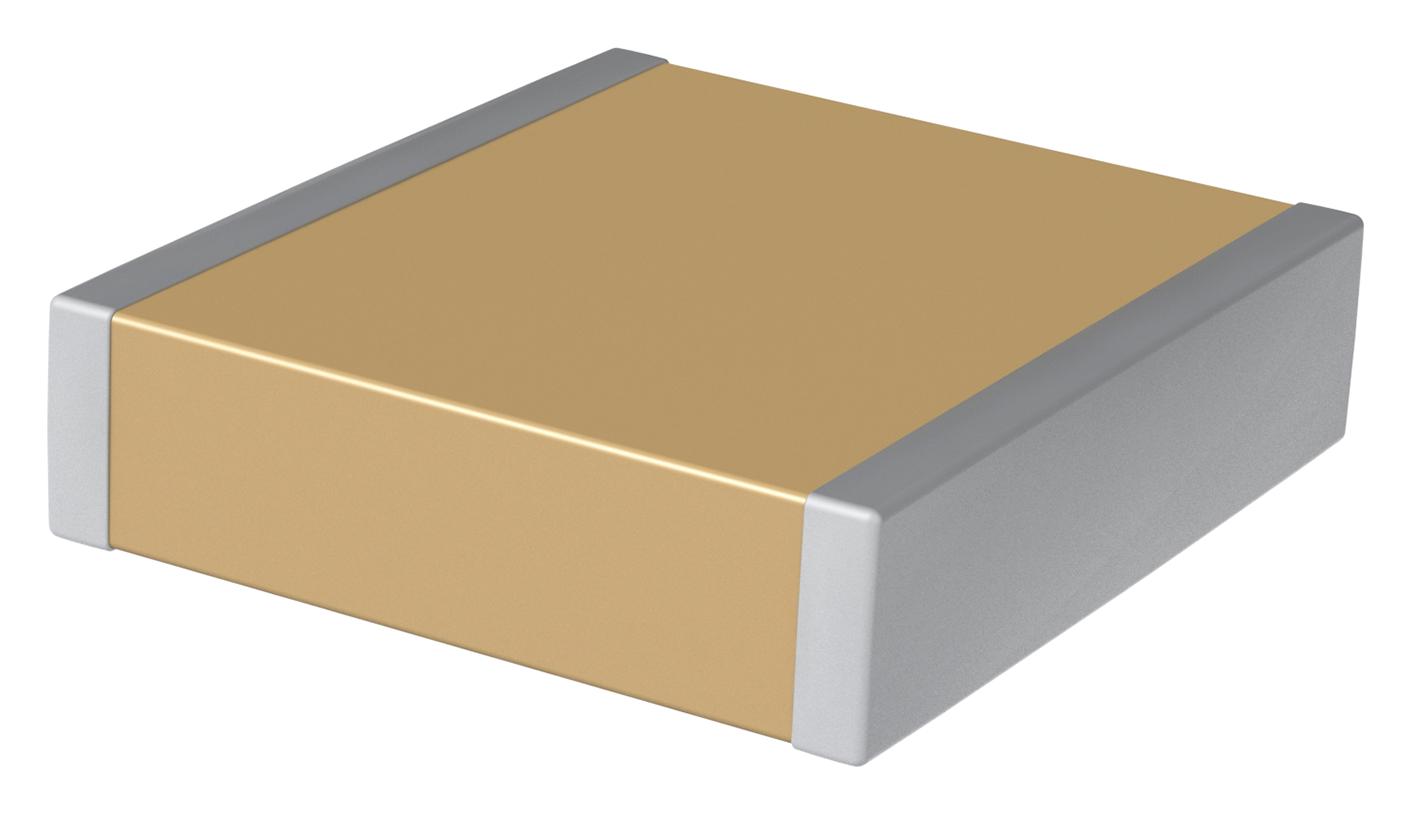

KEMET CKC21C682JJGACAUTO Automotive Ceramic Capacitor
The KEMET CKC21C682JJGACAUTO is a high-performance multilayer ceramic capacitor specifically engineered for automotive applications. Its C0G dielectric ensures exceptional stability across temperature variations, while the high voltage rating (1700 VDC) and low dissipation factor contribute to reliable operation in demanding environments. The AEC-Q200 qualification guarantees adherence to stringent automotive quality standards. This capacitor is ideal for decoupling, filtering, and timing circuits in automotive electronics, including engine control units, infotainment systems, and advanced driver-assistance systems (ADAS). Its compact 2220 size format allows for space-efficient designs.
KEMET CKC21C682JJGACAUTO Automotive Ceramic Capacitor Specifications:
- Series: KC-LINK Auto C0G
- Style: SMD Chip
- Description: SMD, MLCC, Ultra-Stable, Low Loss, High Voltage, Automotive Grade
- Features: Ultra-Stable, Low Loss, Automotive Grade
- RoHS: Yes
- Termination: Tin
- Marking: No
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Component Weight: 320 mg
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size: 2220
- L: 5.9mm +/-0.4mm
- W: 5mm +/-0.4mm
- T: 2.5mm +/-0.20mm
- B: 0.6mm +/-0.35mm
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 500
- Capacitance: 6800 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 1700 VDC
- Dielectric Withstanding Voltage: 2040 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
