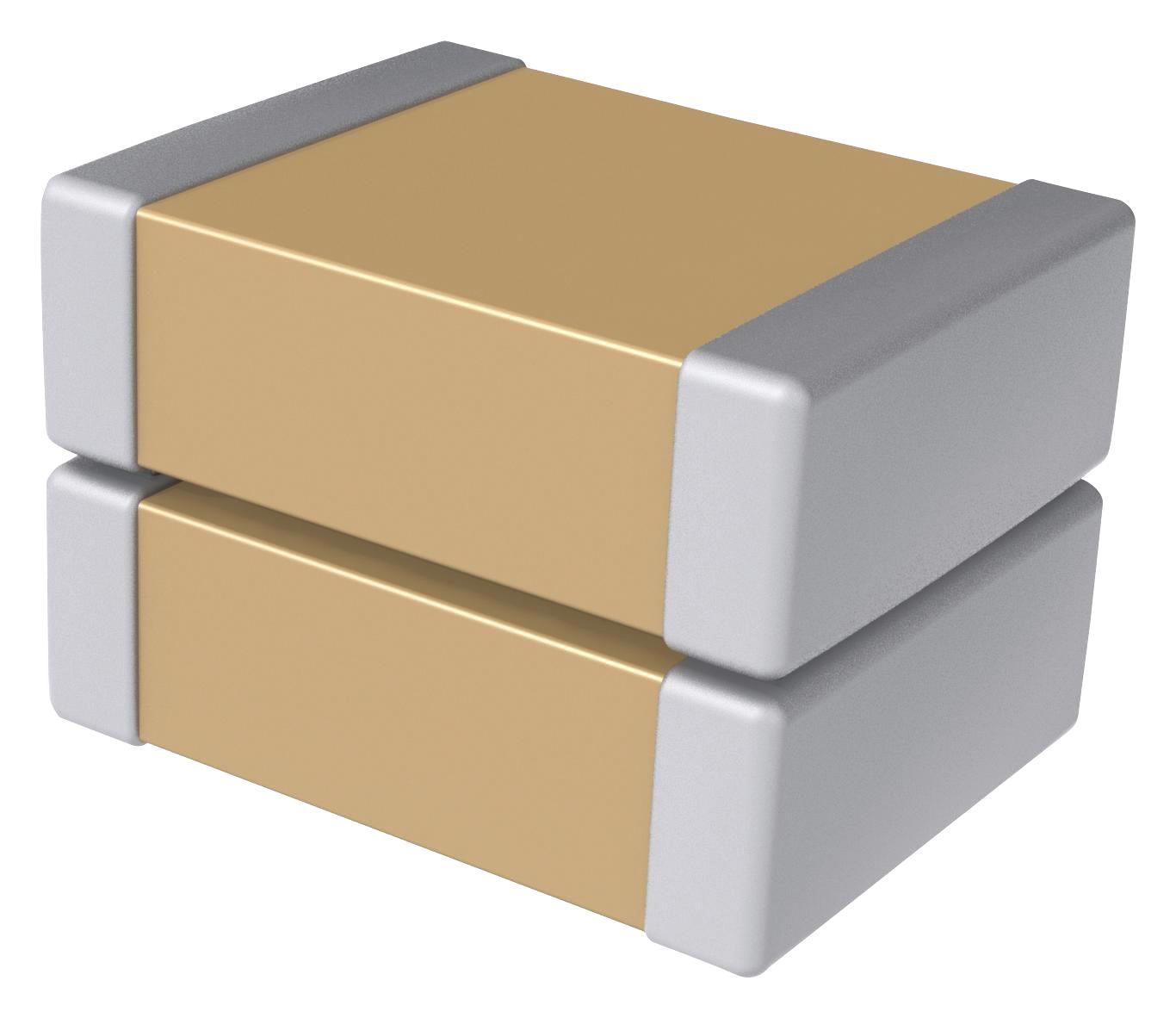

KEMET CKC33C443KJGLC7800 KONNEKT KC-LINK C0G Capacitor
The KEMET CKC33C443KJGLC7800 is a KONNEKT KC-LINK C0G multilayer ceramic capacitor specifically engineered for demanding applications requiring high stability and reliability. This surface mount device (SMD) offers a capacitance of 0.044uF, a voltage rating of 1700VDC, and exhibits excellent temperature characteristics with a C0G dielectric. Its ultra-stable design makes it suitable for various industrial and commercial applications where capacitance drift must be minimized. The capacitor is RoHS compliant and features a 10% capacitance tolerance.
KEMET CKC33C443KJGLC7800 KONNEKT KC-LINK C0G Capacitor Specifications:
- Series: KONNEKT KC-LINK Comm C0G
- Style: KONNEKT
- Description: KC-LINK with KONNEKT, SMD, MLCC, Ultra-Stable, Class I
- Features: Ultra-Stable
- Termination: Tin
- AEC-Q200: No
- Component Weight: 2.2 g
- Notes: 2-Chip Standard Orientation
- Chip Size: 3640
- MSL: 1
- Capacitance: 0.044 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 1700 VDC
- Dielectric Withstanding Voltage: 2040 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC: 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 22.727 GOhms
- Packaging: T&R, 180mm
- Packaging Quantity: 125
