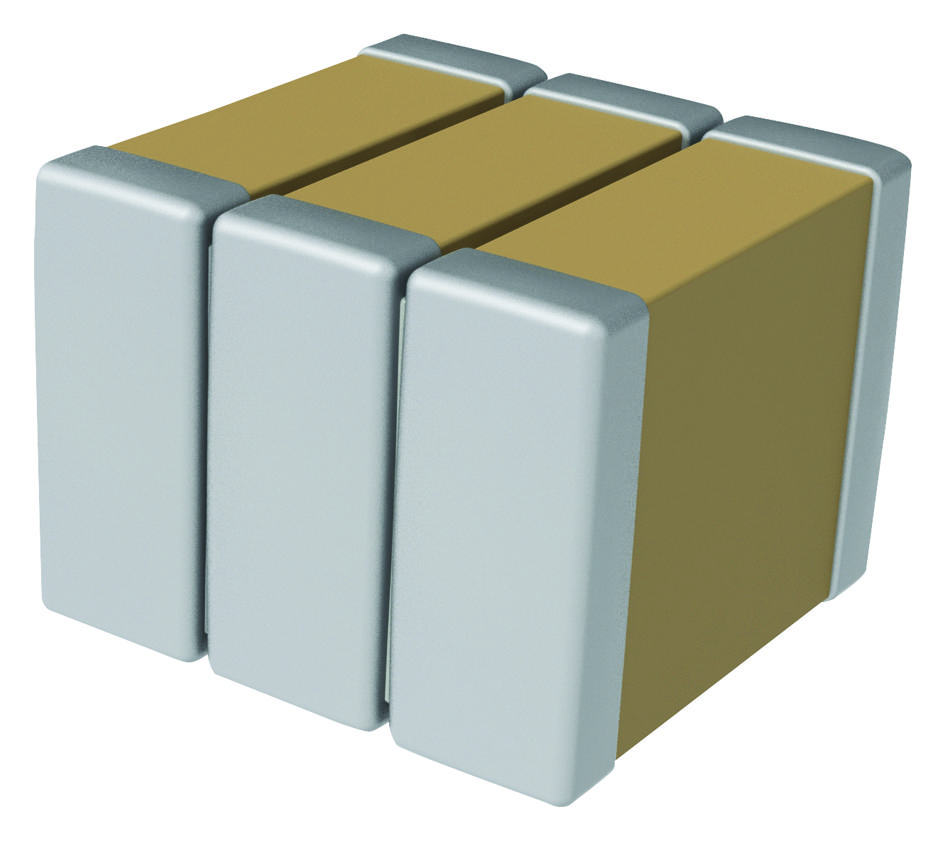

KEMET CKC33C664KCGLC7805 C0G Ceramic Capacitor
The KEMET CKC33C664KCGLC7805 is a multilayer ceramic capacitor (MLCC) from the KONNEKT KC-LINK series. This C0G dielectric capacitor offers exceptional stability and low loss characteristics, making it ideal for demanding applications requiring high reliability and precision. It is designed with a 3-chip low-loss orientation and features a robust construction suitable for various electronic circuits. The capacitor's ultra-stable performance and high voltage rating make it a valuable component in power supplies, filtering circuits, and other critical applications.
KEMET CKC33C664KCGLC7805 C0G Ceramic Capacitor Specifications:
- Series: KONNEKT KC-LINK Comm C0G
- Style: KONNEKT
- Description: KC-LINK with KONNEKT, SMD, MLCC, Ultra-Stable, Class I
- Features: Ultra-Stable
- Termination: Tin
- AEC-Q200: No
- Component Weight: 3.3 g
- Chip Size: 3640
- MSL: 1
- Capacitance: 0.66 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric Withstanding Voltage: 750 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC: 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 1.515 GOhms
- Packaging: T&R, 180mm
- Packaging Quantity: 50
- L: 9.3mm +/-0.6mm
- W: 7.7mm +/-0.6mm
- T: 10.2mm +/-0.4mm
- B: 1.27mm +/-0.4mm
