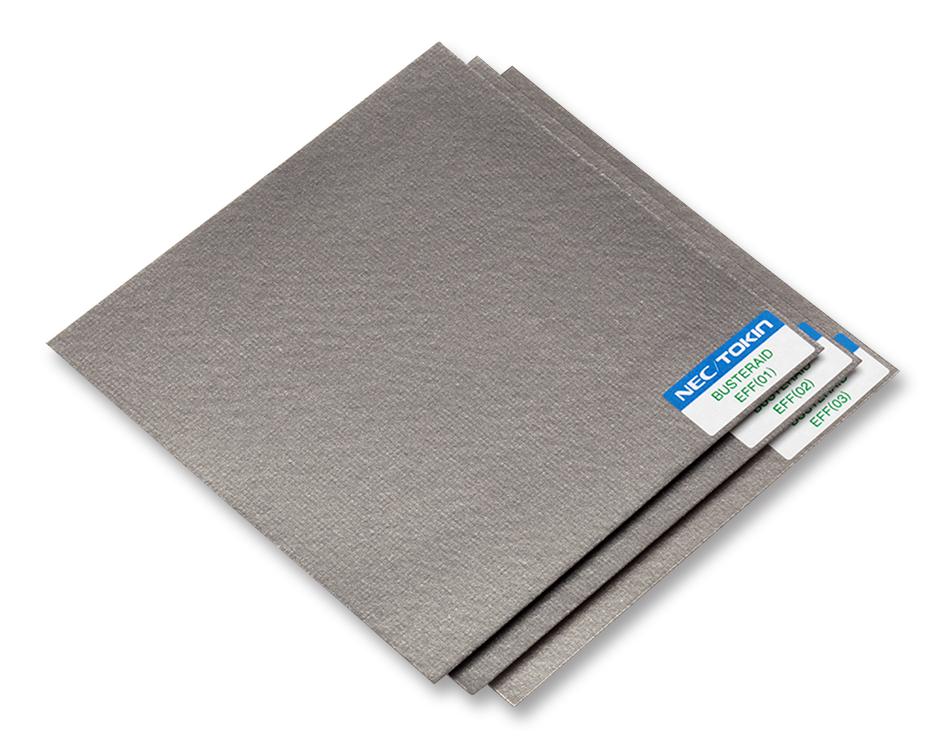

KEMET EFF401240X240T0800 Noise Suppression Sheet
The EFF4 series flex suppressors are flame-retardant, noise suppression sheets designed for electromagnetic interference control in electronic applications. Made from RoHS-compliant, halogen-free, and PVC-free materials, these sheets feature UL94 V-0 flame retardancy and are suitable for various environments. With dimensions of 240x240mm, a thickness of 0.1mm, and a weight of approximately 23.66g per sheet, they provide excellent permeability at 3MHz and effective frequency range from 1 MHz to 3GHz. The surface resistivity is around 1 MOhm/sg. TYP, ensuring reliable performance.
KEMET EFF401240X240T0800 Noise Suppression Sheet Specifications:
- Sheet Size: 240x240mm
- Dimensions: 240mm x 240mm, Thickness: 0.1mm
- Material: Flame retardant, RoHS, halogen-free, PVC-free
- Temperature Range: -40°C to +125°C
- Permeability: 140 u at 3MHz
- Effective Frequency: 1 MHz to 3GHz
- Surface Resistivity: 1 MOhm/sg. TYP
- Specific Gravity: 3.7 TYP
- Packaged without PET tape, weight approximately 23.66g per sheet
- Flame Class: UL94 V-0, RoHS compliant, Halogen-free
Buy the KEMET Series EFF4 Noise Suppressor Sheets: EFF401240X240T0800
Experience top-quality electromagnetic interference control with KEMET EFF4 noise suppression sheets. Designed for durability and safety, these flame-retardant, RoHS-compliant sheets measure 240x240mm with a 0.1mm thickness, ideal for electronic applications requiring EMI filtering. Featuring excellent permeability at 3MHz and an effective frequency range from 1 MHz to 3GHz, they offer reliable performance in demanding environments. Easy to use and environmentally friendly, these sheets ensure optimal electromagnetic compatibility and safety in your projects.
Get KEMET EFF401240X240T0800 today—built for reliable EMI suppression and flame retardant safety in electronic designs.
