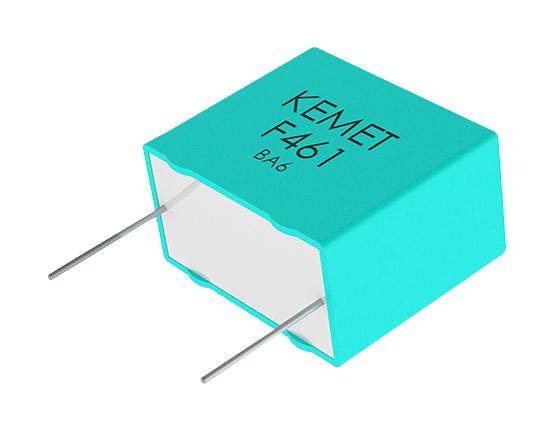

KEMET F461JG472J630A Metallized Polypropylene Film Capacitor
The KEMET F461JG472J630A is a metallized polypropylene film capacitor suitable for a wide range of general-purpose applications. It features a high voltage rating of 630VDC and is designed to handle pulse loads effectively. The capacitor's dielectric material provides excellent stability and low losses, making it suitable for power supplies, lighting ballasts, and other demanding applications. The rated voltage decreases 2%/°C between +85°C and +105°C (1.25%/°C for AC).
KEMET F461JG472J630A Metallized Polypropylene Film Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 5%
- Voltage AC: 250 VAC
- Voltage DC: 630 VDC, 378 VDC (105C)
- Temperature Range: -55/+105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.04% 1kHz, 0.06% 10kHz, 0.25% 100kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 500 V/us
- Inductance: 6 nH
- Dimensions L: 7.2mm -0.5mm
- Dimensions H: 7.5mm -0.5mm
- Dimensions T: 3.5mm -0.5mm
- Dimensions S: 5mm +/-0.4mm
- Dimensions LL: 17mm +0/-1mm
- Dimensions F: 0.5mm +/-0.05mm
- Dimensions G: 0.5mm NOM
- Packaging: Bulk, Bag
- Packaging Quantity: 3000
- Series: F461
- Dielectric: Metallized Polypropylene
- Style: Radial
- Features: MKP, Pulse
- Lead: Wire Leads
- AEC-Q200: No
- Component Weight: 0.378 g
