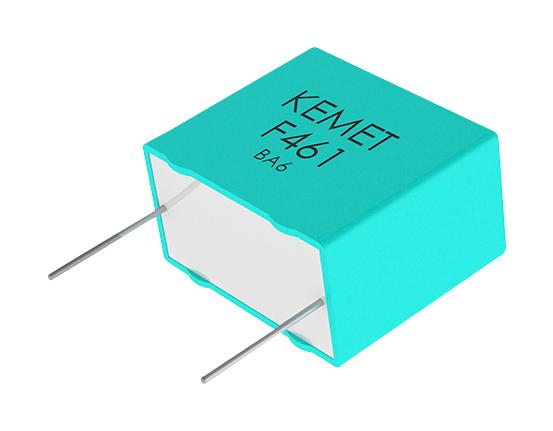

KEMET F461KE103J250A Metallized Polypropylene Film Capacitor
The KEMET F461KE103J250A is a metallized polypropylene film capacitor designed for general-purpose applications requiring high voltage and stability. It offers a capacitance of 0.01uF with a 5% tolerance and is rated for 250VDC. The capacitor's radial lead configuration makes it suitable for a wide range of circuit designs. It is RoHS compliant and exhibits low dissipation factor, making it ideal for pulse applications and filtering. The rated voltage decreases 2%/°C between +85°C and +105°C.
KEMET F461KE103J250A Metallized Polypropylene Film Capacitor Specifications:
- Capacitance: 0.01 uF
- Capacitance Tolerance: 5%
- Voltage AC: 160 VAC
- Voltage DC: 250 VDC, 150 VDC (105C)
- Temperature Range: -55/+105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.04% 1kHz, 0.06% 10kHz, 0.25% 100kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 650 V/us
- Inductance: 6 nH
- Dielectric: Metallized Polypropylene
- Style: Radial
- Features: MKP, Pulse
- Lead: Wire Leads
- Component Weight: 0.339 g
- Dimensions L: 10mm -0.5mm
- Dimensions H: 6mm -0.5mm
- Dimensions T: 2.5mm -0.5mm
- Dimensions S: 7.5mm +/-0.4mm
- Dimensions LL: 17mm +0/-1mm
- Dimensions F: 0.6mm +/-0.05mm
- Dimensions G: 0.5mm NOM
- Packaging: Bulk, Bag
- Packaging Quantity: 3000
