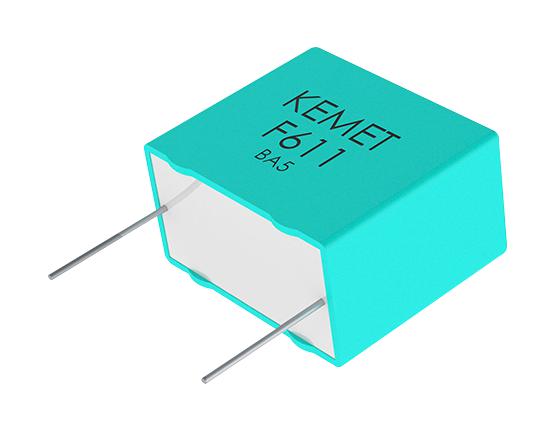

KEMET F611BY154K1K0A metallized polyester film capacitor
The F611 series is a metallized polyester film capacitor designed for general-purpose applications, capable of handling up to 1000 VDC with a capacitance of 0.15 uF and a tolerance of 10%. It features a radial style with wire leads, a maximum temperature rating of 85°C, and operates effectively within a temperature range of -55°C to +105°C. The capacitor has a length of 18mm, height of 19mm, and a lead spacing of 15mm, making it suitable for various electronic circuits requiring stable performance and reliable capacitance values.
KEMET F611BY154K1K0A metallized polyester film capacitor Specifications:
- Capacitance: 0.15 uF
- Tolerance: 10%
- Voltage DC: 1000 VDC (750 VDC at 105°C)
- Voltage AC: 250 VAC
- Temperature Range: -55°C to +105°C
- Max Temperature: 85°C
- Dielectric: Metallized Polyester
- Style: Radial with wire leads
- Dimensions: Length 18mm ±0.5mm, Height 19mm ±0.5mm, Lead Spacing 15mm ±0.4mm
- Dissipation Factor: 0.8% at 1kHz, 1.5% at 10kHz
- Insulation Resistance: 30 GOhms
- Maximum dV/dt: 30 V/μs
- Inductance: 6 nH
- Packaging: Bulk, Quantity: 400
Buy the Buy KEMET Metallized Polyester Capacitor Part Number F611BY154K1K0A Online
Order the KEMET metallized polyester film capacitor F611BY154K1K0A online today to ensure your electronic applications benefit from high performance, stability, and durability. Suitable for general-purpose use, it offers 0.15 uF capacitance, 1000 VDC voltage rating, and operates across a wide temperature range from -55°C to +105°C. Ideal for various circuits, this rugged capacitor features radial wire leads, reliable insulation resistance, and is packaged in bulk for easy integration into your manufacturing or repair processes. Shop now for fast delivery.
Buy KEMET F611BY154K1K0A now and experience unmatched reliability and performance for your electronic projects with high voltage stability and long-term durability.
Frequently Asked Questions
Where can I buy KEMET F611BY154K1K0A?
You can click on the BUY or RFQ button to purchase F611BY154K1K0A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part F611BY154K1K0A?
You can download the F611BY154K1K0A datasheet or visit the KEMET website for support.
Who is the manufacturer of F611BY154K1K0A?
KEMET
