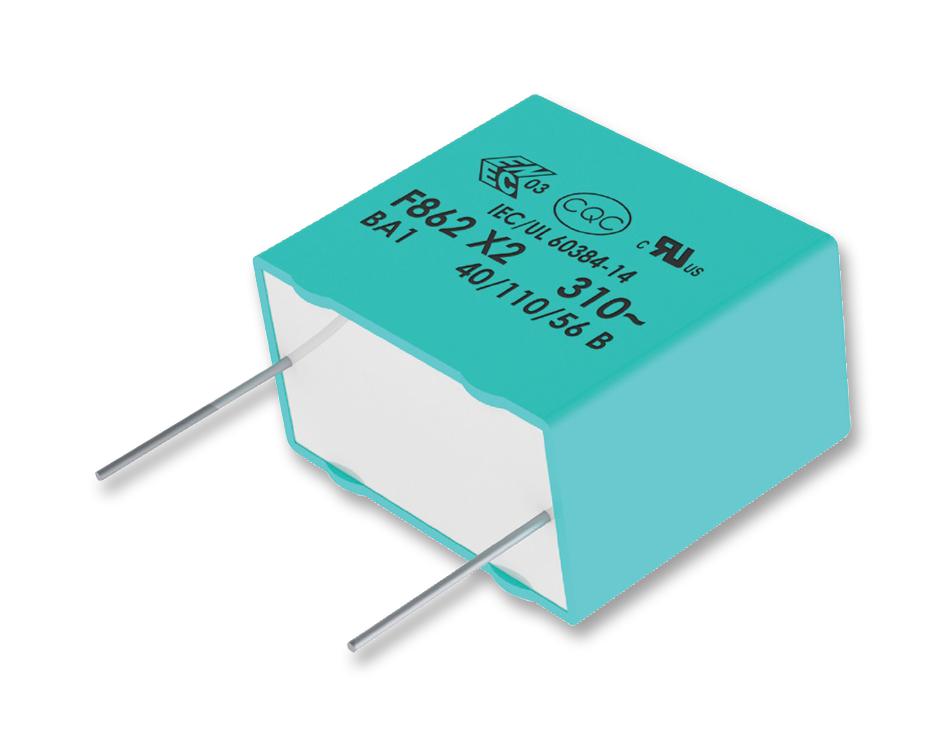

KEMET F862BK104K310Z Automotive Film Capacitor
The F862BK104K310Z is a high-performance metallized polypropylene film capacitor designed for automotive safety applications. With a capacitance of 0.1 microfarads and a tolerance of 10%, it supports voltage ratings of 310 VAC (X2) and 630 VDC. Operating within a temperature range of -40°C to +110°C, it features rugged construction suitable for harsh environmental conditions and heavy-duty use. Compliant with RoHS standards, it includes safety classifications such as X2 and is qualified by UL, GUL, CQC, and AEC-Q200, making it ideal for demanding automotive and industrial environments.
KEMET F862BK104K310Z Automotive Film Capacitor Specifications:
- Capacitance: 0.1 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Insulation Resistance: 30 GOhms
- Dissipation Factor: 0.3% at 1kHz
- Dimensions: Length 18mm -0.5mm, Height 13.5mm -0.5mm, Thickness 7.5mm -0.5mm, Lead Spacing 15mm +/-0.4mm
- Lead: Cut/Short
- Dielectric: Metallized Polypropylene
- Style: Radial
- RoHS: Yes
- Safety Class: X2
- Qualifications: UL, GUL, CQC, AEC-Q200
- Shelf Life: 104 Weeks
Buy the Buy KEMET F862BK104K310Z Part Number F862BK104K310Z Online
Enhance your automotive electrical system with the KEMET F862BK104K310Z film capacitor, featuring 0.1 microfarads capacitance, 310VAC and 630VDC voltage ratings, and operating from -40°C to +110°C. Designed for harsh environments, it is compliant with RoHS standards and qualifies for a range of automotive safety certifications including UL, GUL, and AEC-Q200. Whether for industrial or automotive applications, this rugged, reliable capacitor ensures optimal performance and durability in demanding conditions. Purchase online now for fast delivery and exceptional quality.
Get KEMET F862BK104K310Z today—built for automotive safety and long-lasting heavy-duty performance.
Frequently Asked Questions
Where can I buy KEMET F862BK104K310Z?
You can click on the BUY or RFQ button to purchase F862BK104K310Z from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part F862BK104K310Z?
You can download the F862BK104K310Z datasheet or visit the KEMET website for support.
Who is the manufacturer of F862BK104K310Z?
KEMET
